JimiLab VL110C 4G Wired GPS Tracker NZ – Remote Fuel Cut-Off, for Cars, Utes, Trucks & Machinery | Optional SIM Card & Web Tracking $95/Year

🛡️ JimiLab VL110C 4G Wired GPS Tracker + TracksolidPro – Track It, Protect It, Stop It Remotely from $95

✅ Only $95 per device – compact hardwired tracker with relay included

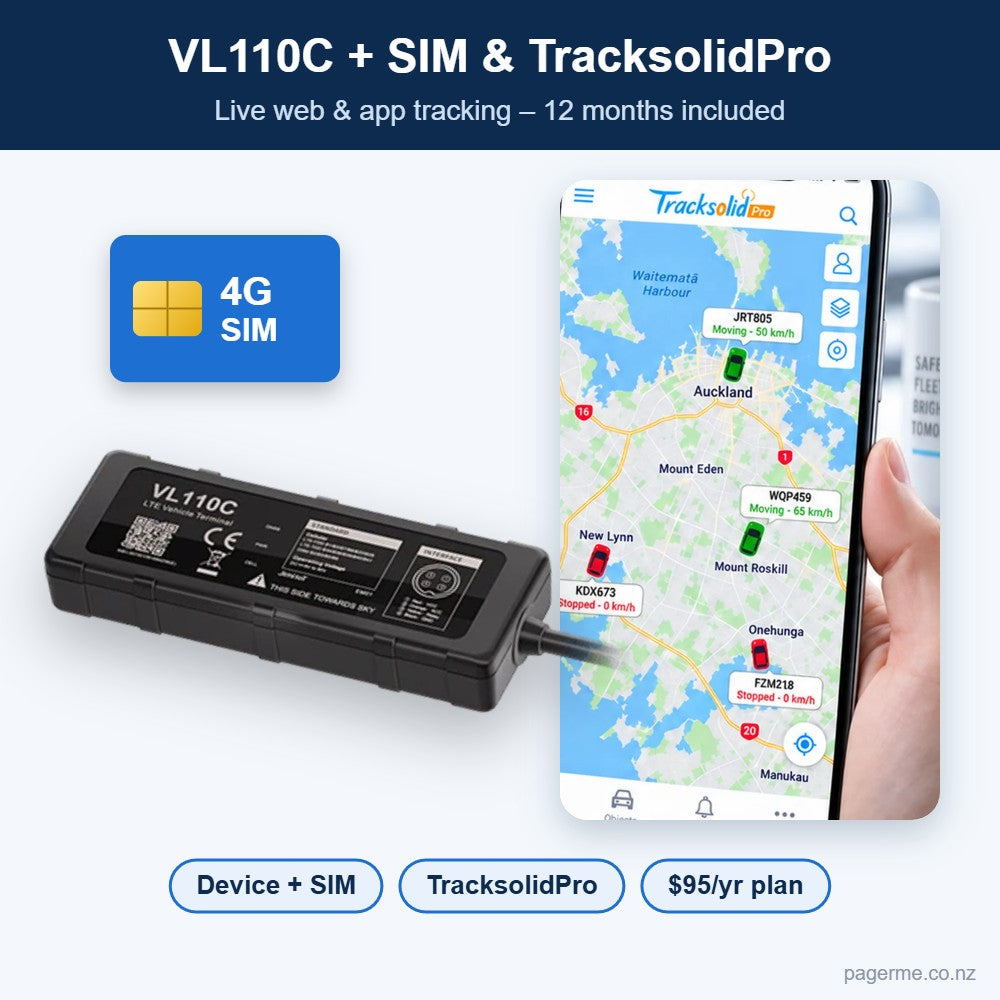

📡 SIM card & TracksolidPro web/app tracking – only $95 per device per year
⛔ Remote fuel / power cut-off – stop a stolen vehicle from your phone
⚡ 9–90 V input – cars, utes, trucks, motorcycles, trailers, boats & machinery
🚛 Fleet pricing – order 1 to 60 devices in one click
🛡️ 24-Month NZ Warranty & Local Support · 📦 NZ Stock – Fast Local Delivery

🚛 Manage Your Whole Fleet from One Screen

From one ute to 60 trucks, trailers and machines, the VL110C and the TracksolidPro platform give you a live, accurate picture of every asset — where it is, whether it's moving or parked, whether the ignition is on, how fast it's going and how it's being driven. Every vehicle and asset appears on one map, grouped into your own fleets, so you can see the whole operation at a glance and act straight away.

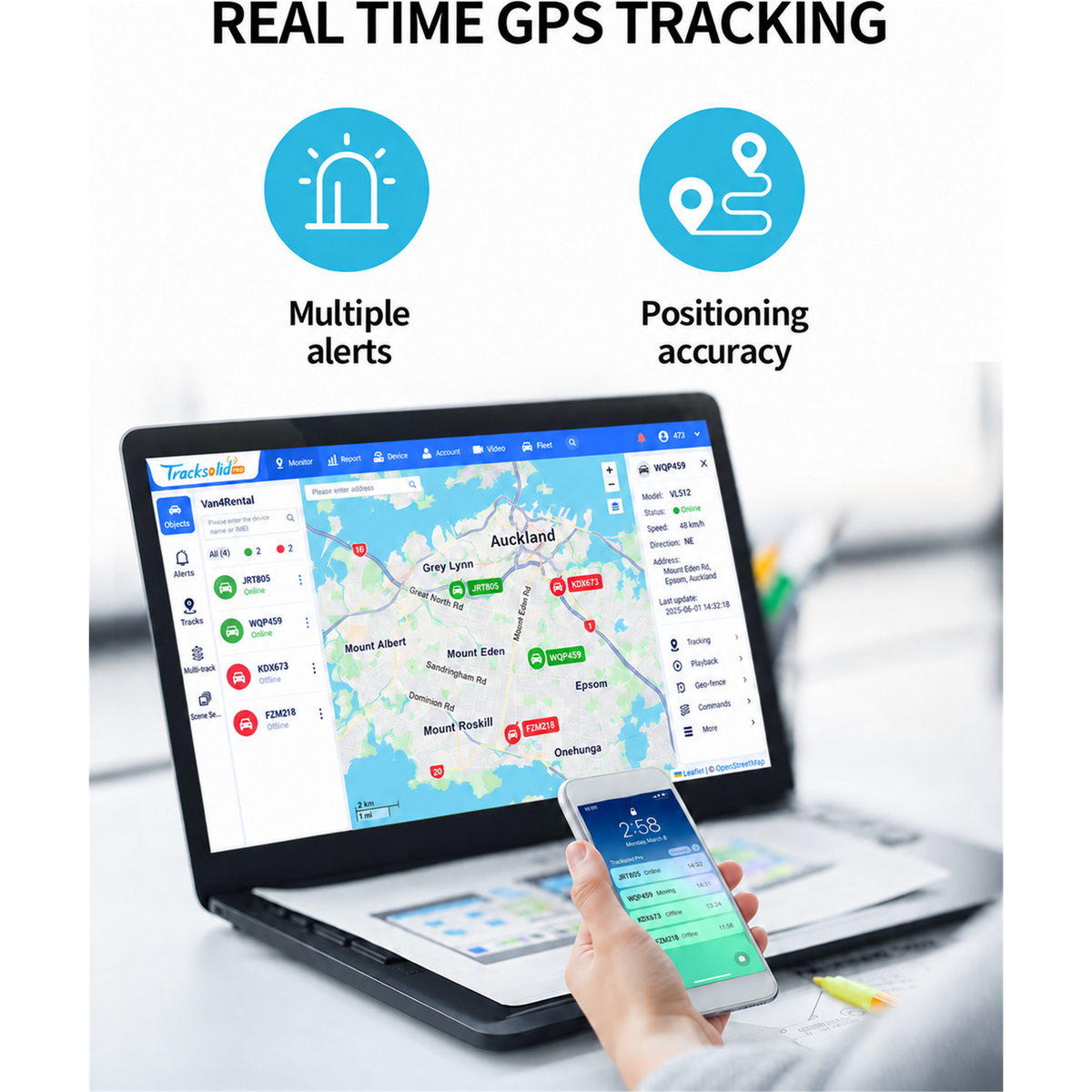

TracksolidPro fleet view – every vehicle, its live speed and parked time in one list and one map.

💼 What Fleet Management Does for Your Business

• ⏱️ Save time dispatching – see the nearest available vehicle instantly and send it to the next job, instead of phoning drivers.
• ⛽ Cut fuel costs – ignition, idling, speeding and unplanned trips are visible and reportable, so you can act on wasted fuel.
• 🚦 Safer drivers, fewer accidents – harsh acceleration, harsh braking, harsh cornering, speeding and collision alerts help you coach drivers and protect your people.
• 🧾 Accurate records – trips, mileage, parking and ignition times are logged automatically for timesheets, customer billing, RUC and disputes.
• 🔒 Protect your assets – movement, vibration, geo-fence, power-cut and jamming alerts warn you the moment something isn't right – and the relay lets you immobilise the vehicle remotely.
• 🔧 Plan maintenance – mileage data makes service scheduling simple and keeps vehicles and machines working longer.

🖥️ Try It Yourself – Free TracksolidPro Demo Login

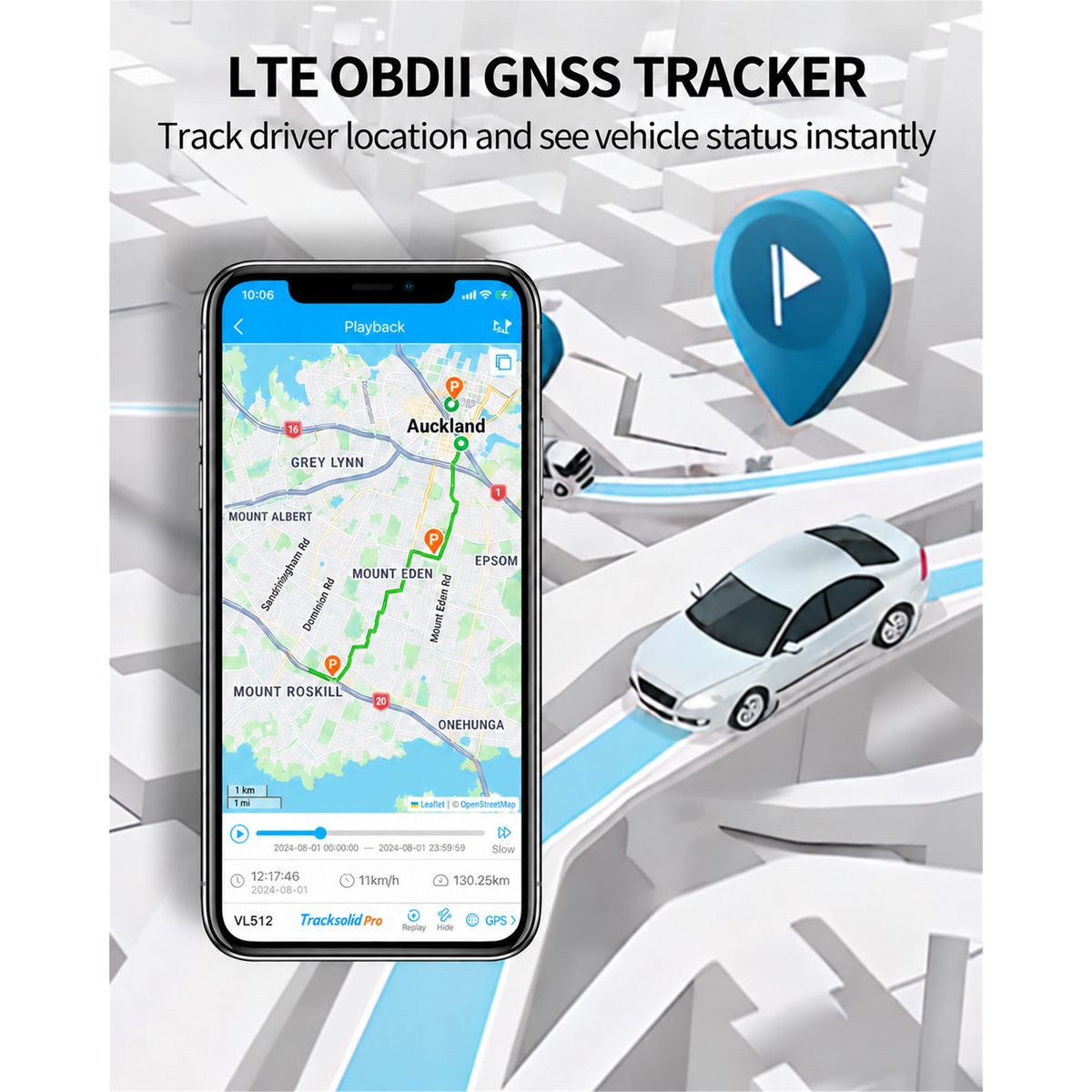

See exactly what you'll be managing before you buy. Log in to the free TracksolidPro demo account and explore a real fleet dashboard – live map, vehicle list, route playback, reports and alerts – in under a minute. No sign-up needed.

1. Go to www.tracksolidpro.com – or download the free TracksolidPro app from Google Play or the App Store.
2. Account: 123456Test
3. Password: 123456Test
4. Click Login (or use the Demo » link under the Login button).

The demo is a shared public sample account showing example vehicles. When you order the SIM & TracksolidPro plan, we set up your own private account with your vehicles.

⛔ Remote Fuel / Power Cut-Off – Stop It, Don't Just Watch It

Most trackers only tell you where a stolen vehicle is. The VL110C lets you stop it. Using the relay supplied in the box, you can cut the vehicle's fuel pump or starter circuit with a tap in the TracksolidPro app – protecting against theft and unauthorised use, even from the other end of the country.

• 🔑 Ignition detection – know the moment the engine starts, and spot out-of-hours use.
• ⛔ Remote cut-off – immobilise the vehicle through the relay when an alarm or theft is detected.
• 🔔 Multiple alerts – vibration, movement, speeding, power cut / tracker removal and low vehicle battery.
• 🔋 Vehicle battery protection – if the vehicle battery drops to a critical level, the VL110C disconnects and runs on its internal 270 mAh battery, so it never flattens your battery and keeps reporting.

📶 Jamming Detection – Shield Against Signal Interference

Professional thieves use GPS and mobile-signal jammers to make trackers go silent. The VL110C detects GNSS and LTE jamming, raises an instant alarm and can trigger the relay to cut fuel or power (configurable), so a jammed vehicle doesn't get far.

🌐 Why TracksolidPro? Reliable, Simple to Use, Proven Quality

TracksolidPro is the official cloud tracking platform from Jimi IoT (JimiLab), the manufacturer of the VL110C. Jimi IoT ships over 8 million units a year to 180+ countries and regions, and TracksolidPro is trusted by fleets around the globe:

~3 million devices connected (2.6 million+ integrated)

800,000+ devices active daily

180+ countries

30+ languages

• ✅ Reliable – a mature, large-scale cloud platform running millions of devices every day, so your data is there when you need it.
• ✅ Simple to use – clean web dashboard plus iOS & Android apps; most customers are tracking within minutes, with no training needed.
• ✅ Quality – device and platform come from the same manufacturer, so the VL110C and TracksolidPro work together seamlessly, including remote cut-off commands.
• ✅ Anywhere access – 24/7 access from your office computer, laptop, tablet or phone, with multi-user accounts so managers and dispatchers can share the view.

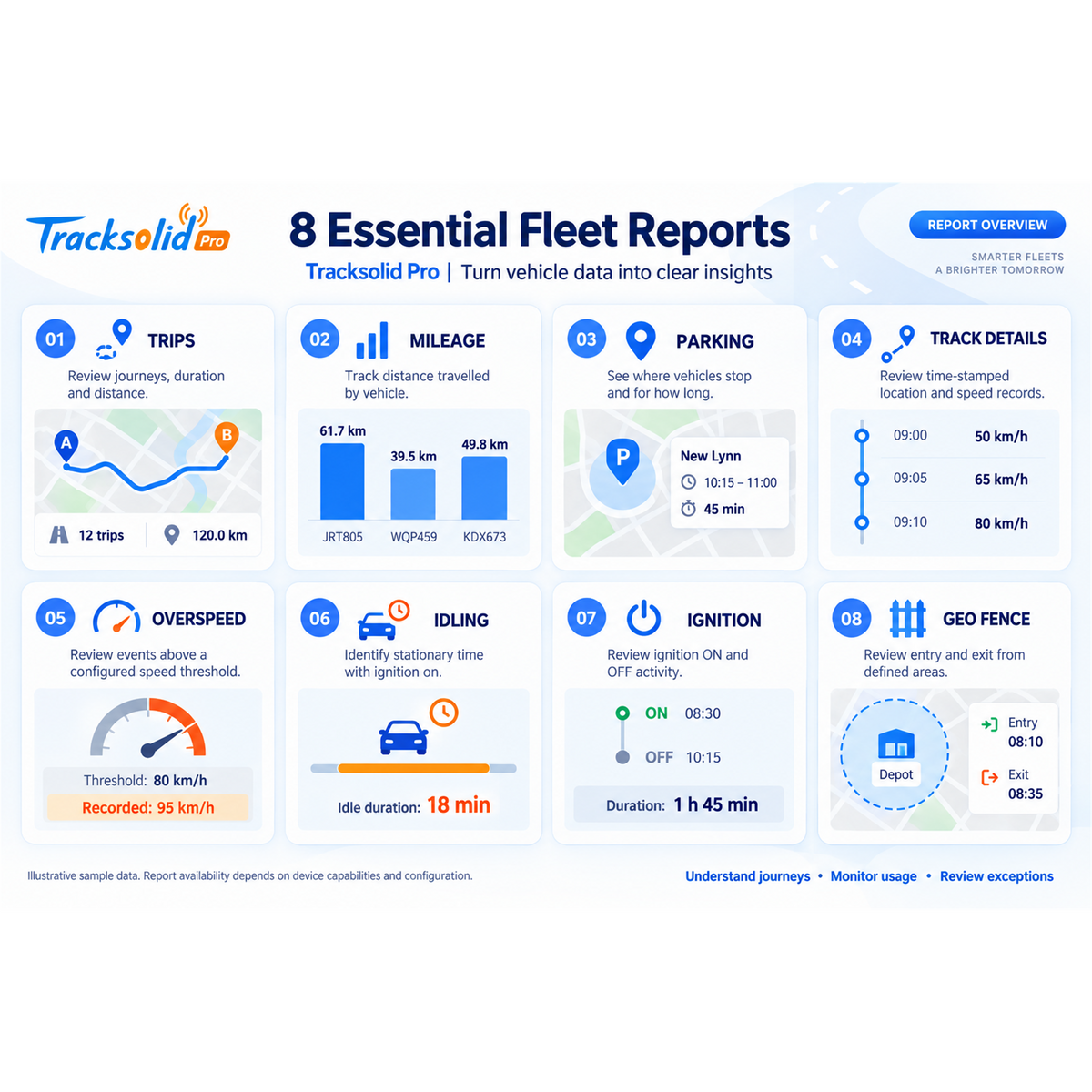

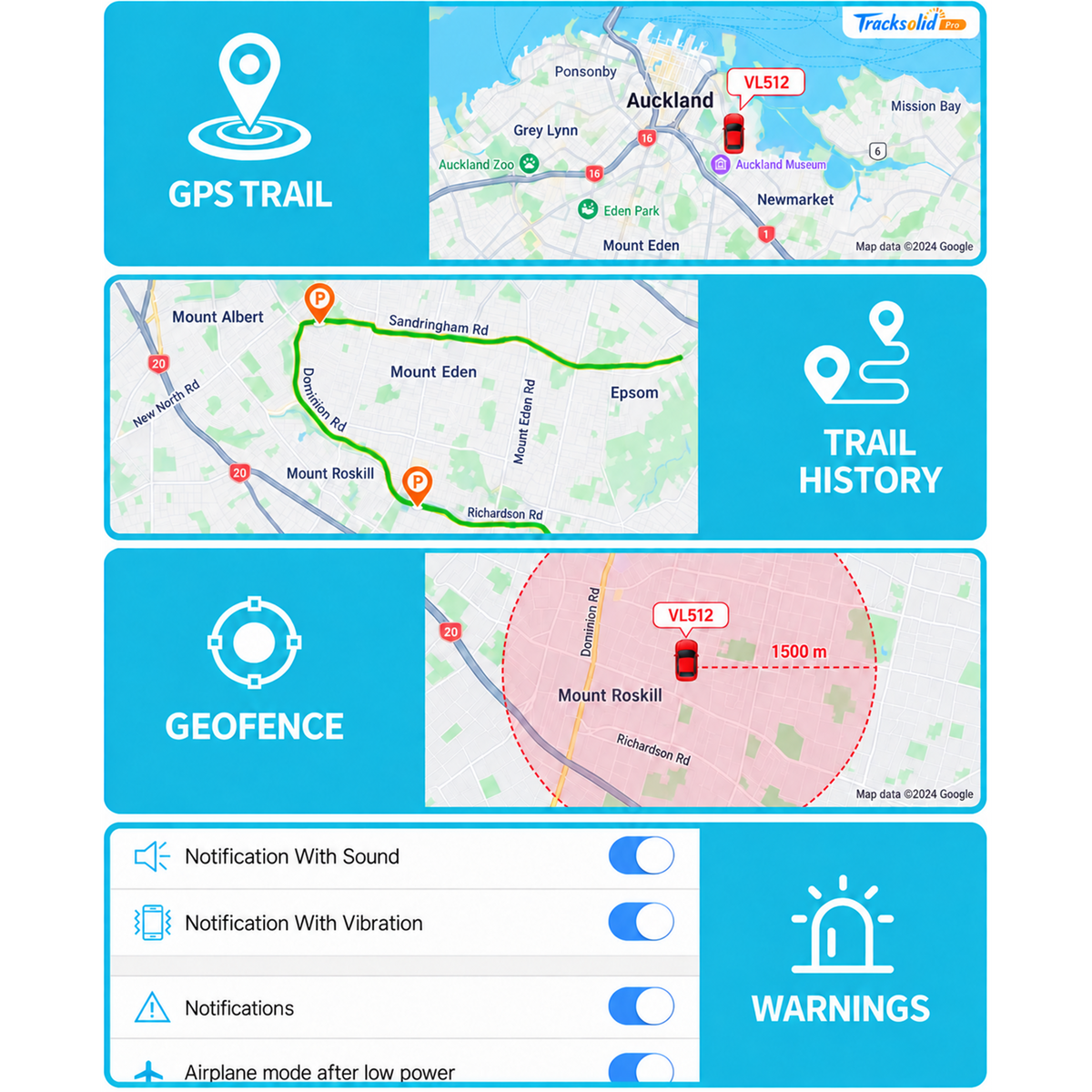

📊 8 Essential Fleet Reports – Turn Vehicle Data into Clear Decisions

1. Trips – every journey with start, finish, duration and distance.
2. Mileage – distance travelled by each vehicle, ideal for servicing, RUC planning and cost allocation.
3. Parking – where vehicles stopped and for how long; confirm site visits and spot unauthorised stops.
4. Track details – time-stamped location and speed records for any period.
5. Overspeed – every event above your chosen speed limit, for driver coaching and safety compliance.
6. Idling – engine-on stationary time, a direct source of wasted fuel.
7. Ignition – ON/OFF times (from the VL110C's ACC wire) to verify working hours and vehicle use.
8. Geo-fence – entry and exit times for depots, farms, job sites or no-go zones.

🔹 Why Choose the VL110C Tracker?

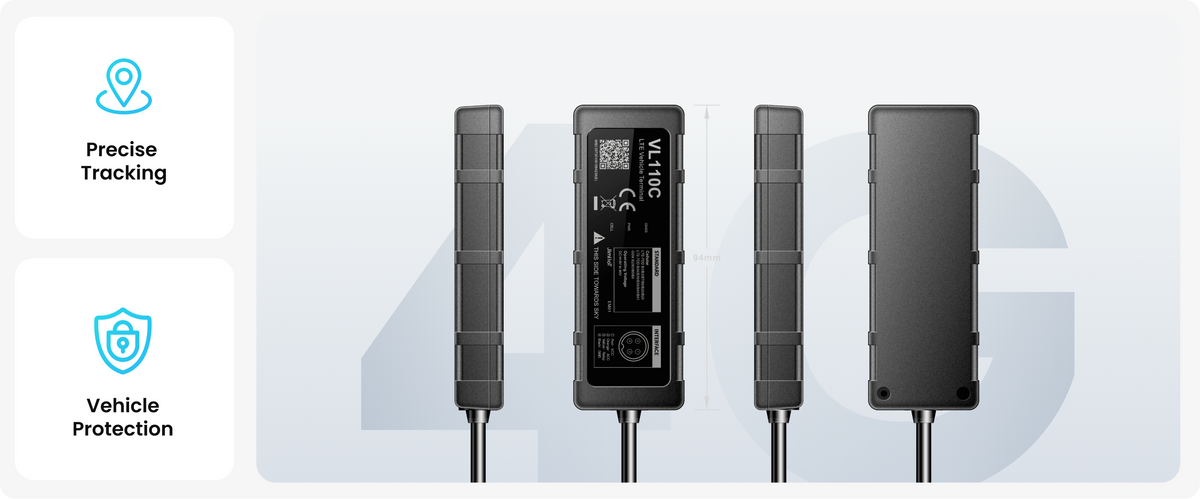

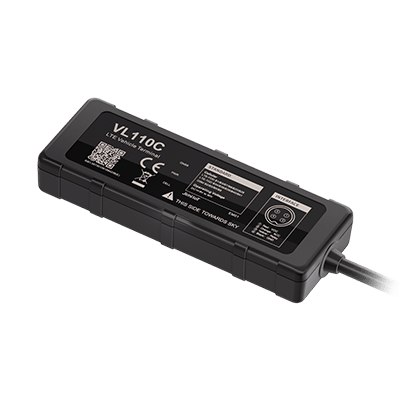

The JimiLab VL110C is a compact 4G LTE wired vehicle tracker — just 94 × 34 × 15 mm and 44 g, so it hides easily behind a dash panel, under a seat or inside a trailer frame where thieves won't find it. Because it is hardwired, there's nothing to unplug and nothing to recharge: it's permanently powered by the vehicle and reports around the clock.

The wide 9–90 V DC input suits almost anything with a battery – cars, utes, vans, 24 V trucks, motorcycles, tractors, forklifts, golf carts, boats, horse floats and trailers with power. GPS + BDS + LBS positioning gives accuracy better than 2.5 m, LTE Cat 1 with automatic 2G fallback keeps it connected, and an IP65 housing shrugs off dust and water. Up to 3,000+ GNSS points are stored on board when there's no signal and uploaded when the connection returns.

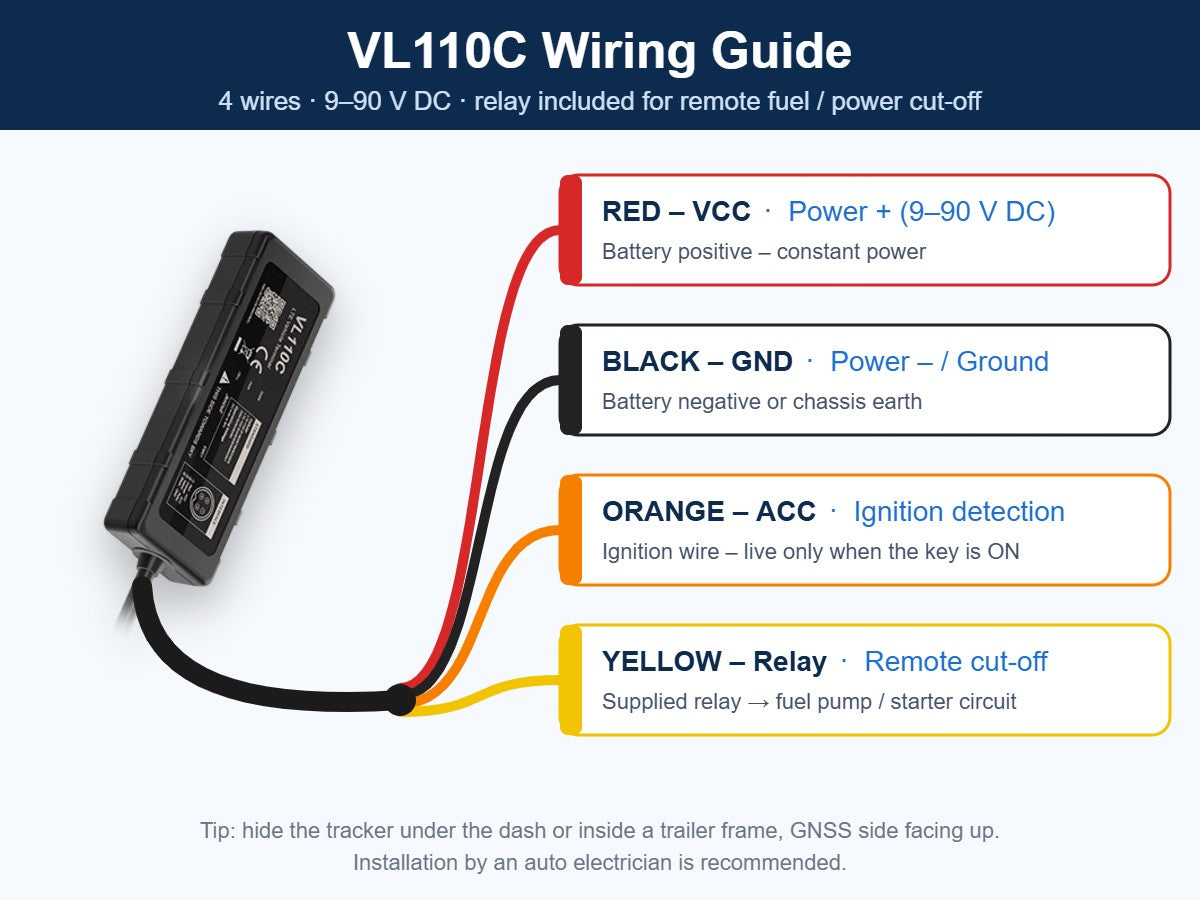

🔌 Simple 4-Wire Installation

The VL110C connects with just four colour-coded wires. A relay, 0.8 m power cable and screwdriver are included in the box. We recommend installation by an auto electrician – especially for the cut-off relay.

🔴 Red – VCC	Power + (9–90 V DC) – constant battery positive
⚫ Black – GND	Power – / ground – battery negative or chassis earth
🟠 Orange – ACC	Ignition detection – wire that is live only when the key is ON
🟡 Yellow – Relay	Remote fuel / power cut-off – via the supplied external relay

Insert a Nano-SIM (supplied with the SIM plan), switch the internal battery ON, refit the cover and the tracker appears in TracksolidPro within minutes.

🛒 Ordering & Pricing – Simple, Transparent

• 1. Number of devices – choose 1 to 60 units at $95 per device (e.g. 5 devices = $475, 10 devices = $950).
• 2. Tracking plan – Device only, or Device + SIM card & TracksolidPro web/app tracking for $95 per device per year (under $8 a month).

Per device	Price
Device only (tracker, power cable, relay, screwdriver)	$95
Device + SIM & TracksolidPro (12 months)	$190 – complete tracking package

Fleet example: 10 trucks or trailers with SIM & TracksolidPro = 10 × ($95 + $95) = $1,900 for a full year of tracking, reports, alerts and remote cut-off — about $16 per vehicle per month in the first year, and just $95 per vehicle per year after that.

Need more than 60 units, installation, or a multi-year plan? Contact us for a fleet quote.

⚙️ Technical Specifications

Model	JimiLab (Jimi IoT) VL110C LTE vehicle terminal
Positioning	GPS, BDS (BeiDou), LBS
Positioning accuracy	<2.5 m CEP
Sensitivity	Tracking –165 dBm; acquisition –148 dBm
Time to first fix (open sky)	Hot start ≤2 s; cold start ≤38 s (average)
Cellular	4G LTE Cat 1 with 2G GSM fallback (LTE-FDD B1/B3/B7/B8/B20/B28)
Input voltage	9–90 V DC (hardwired)
Standby current	<5 mA
Backup battery	270 mAh / 3.7 V industrial-grade Li-polymer
Inputs / outputs	1 × ACC (ignition) input, 1 × relay output; voltage detection 0–90 V
Sensors	Accelerometer – harsh acceleration, braking, cornering, collision, vibration
Alerts	Movement, vibration, speeding, geo-fence, power cut / removal, low vehicle battery, GNSS & LTE jamming
Data storage	3,000+ GNSS data entries
SIM / USB	Nano-SIM; USB Type-C (firmware upgrade)
LED indicators	GNSS (blue), cellular (green), power (red)
Ingress rating	IP65
Dimensions / weight	94 × 34 × 15 mm · 44 g
Operating temperature / humidity	–20 °C to +70 °C; 5–95 % non-condensing
Configuration	SMS, PC tools, TracksolidPro, Type-C
Certification	CE / FCC / RoHS

📑 Downloads: Product Leaflet (PDF) • User Manual (PDF)

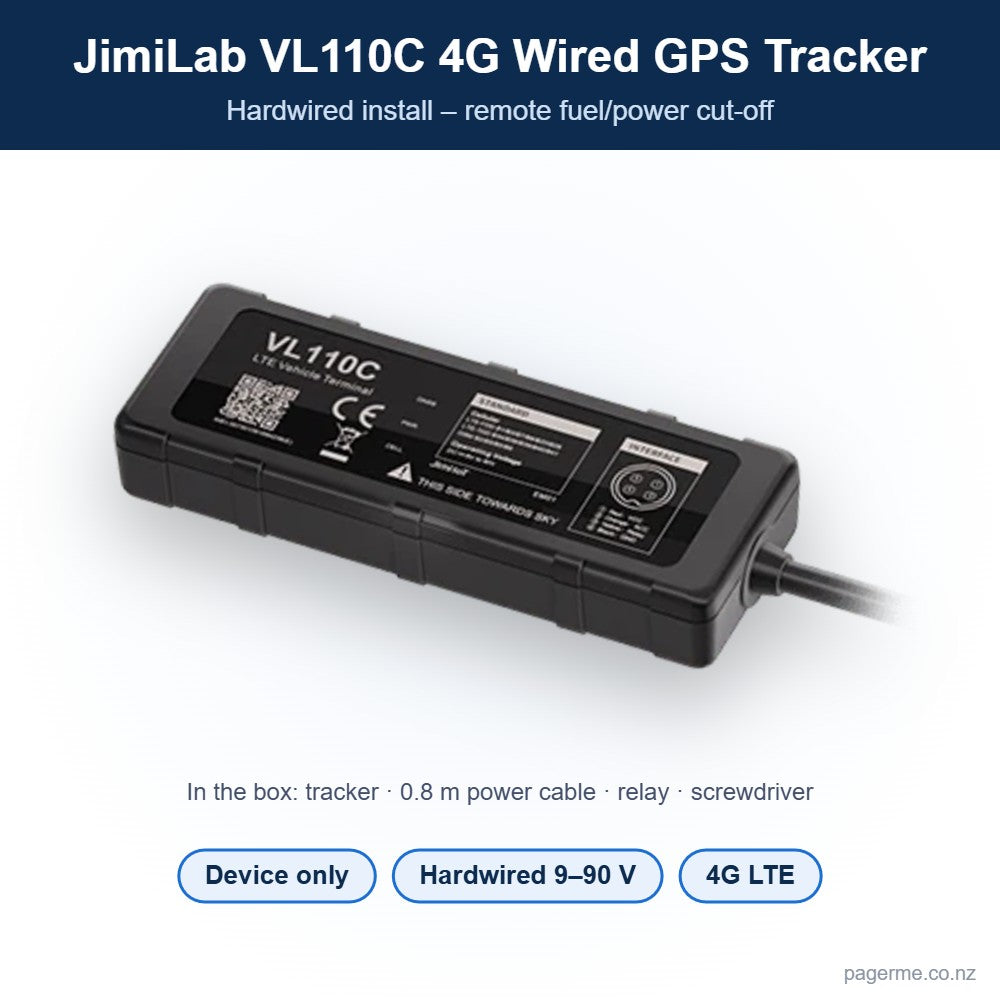

📦 What's in the Box

• JimiLab VL110C 4G wired GPS tracker (quantity as selected)
• 1 × power cable (0.8 m) per tracker
• 1 × relay per tracker (for remote fuel / power cut-off)
• 1 × screwdriver
• SIM card & tracking plan: Nano-SIM with 12 months of data and TracksolidPro web & app access (when selected)

⚠️ Please note: mobile phone not included. Phones, laptops, tablets and vehicles shown in the photos are for illustration only. Simply download the free TracksolidPro app on your own iOS or Android smartphone, or log in from any web browser.

🌍 Perfect For

🚚 Transport, Logistics & Courier Fleets – live dispatch, driver scoring and fuel savings
🚜 Farms, Forestry & Construction – tractors, machinery, forklifts and 24 V plant
🛥️ Trailers, Horse Floats & Boats – theft alerts and recovery for powered assets
🏍️ Motorcycles, Golf Carts & Scooters – 9–90 V input covers small and large vehicles
🚐 Rental & Leasing – detect unauthorised use and immobilise overdue vehicles
🚗 Personal Cars & Utes – hidden theft protection with remote cut-off

❓ Frequently Asked Questions

Will it work with my vehicle? Yes, almost certainly. The VL110C accepts 9–90 V DC, so it suits 12 V cars and utes, 24 V trucks, motorcycles, machinery and electric vehicles up to 90 V.

Do I need an installer? The VL110C uses four colour-coded wires (power, ground, ignition and relay). If you're comfortable with vehicle wiring you can fit it yourself using the wiring guide and user manual; otherwise any auto electrician can install it quickly. The cut-off relay should always be fitted by a qualified installer.

What's the difference from the VL505 / VL512 OBD trackers? OBD trackers plug in without wiring but can be found and unplugged. The VL110C is hardwired and hidden, works on vehicles without an OBD port (motorcycles, trailers, machinery, boats), and adds remote fuel/power cut-off.

Will it flatten my vehicle battery? No. Standby current is under 5 mA, and the VL110C automatically disconnects from the vehicle battery if it drops to a critical level, running on its own internal battery instead.

Can I see the tracking platform before I buy? Yes – log in to the free demo at www.tracksolidpro.com with Account 123456Test and Password 123456Test.

What happens after the 12-month plan? Renew the SIM & TracksolidPro plan for another year at $95 per device — we'll remind you before it expires.

Questions about fleet set-up, installation or the TracksolidPro platform? Contact us and we'll help you get started.
