🔊 WCS037 KeyPad + WCS114 Kitchen & Staff Pager System – Wireless Restaurant Waitress Pager with Writepad Transmitter
✅ 2-Year Warranty 📦 Fast Delivery Available 🍽️ Designed for Commercial Kitchens, Restaurants & Service Teams 📡 800m+ Transmission Range in Open Space 👨🍳 Perfect Kitchen-to-Staff Communication ⚡ Plug & Play – Pre-Paired & Ready to Use 🔕 No More Shouting Across the Kitchen 📟 Supports Up to 99 Receivers 🧾 Writable Name Board for Accurate Staff Calling 🔋 Long Battery Life with Rechargeable Waist Receivers 💧 IP54 Protection – Helps Resist Oil, Water & Splashes
📦 What’s Included

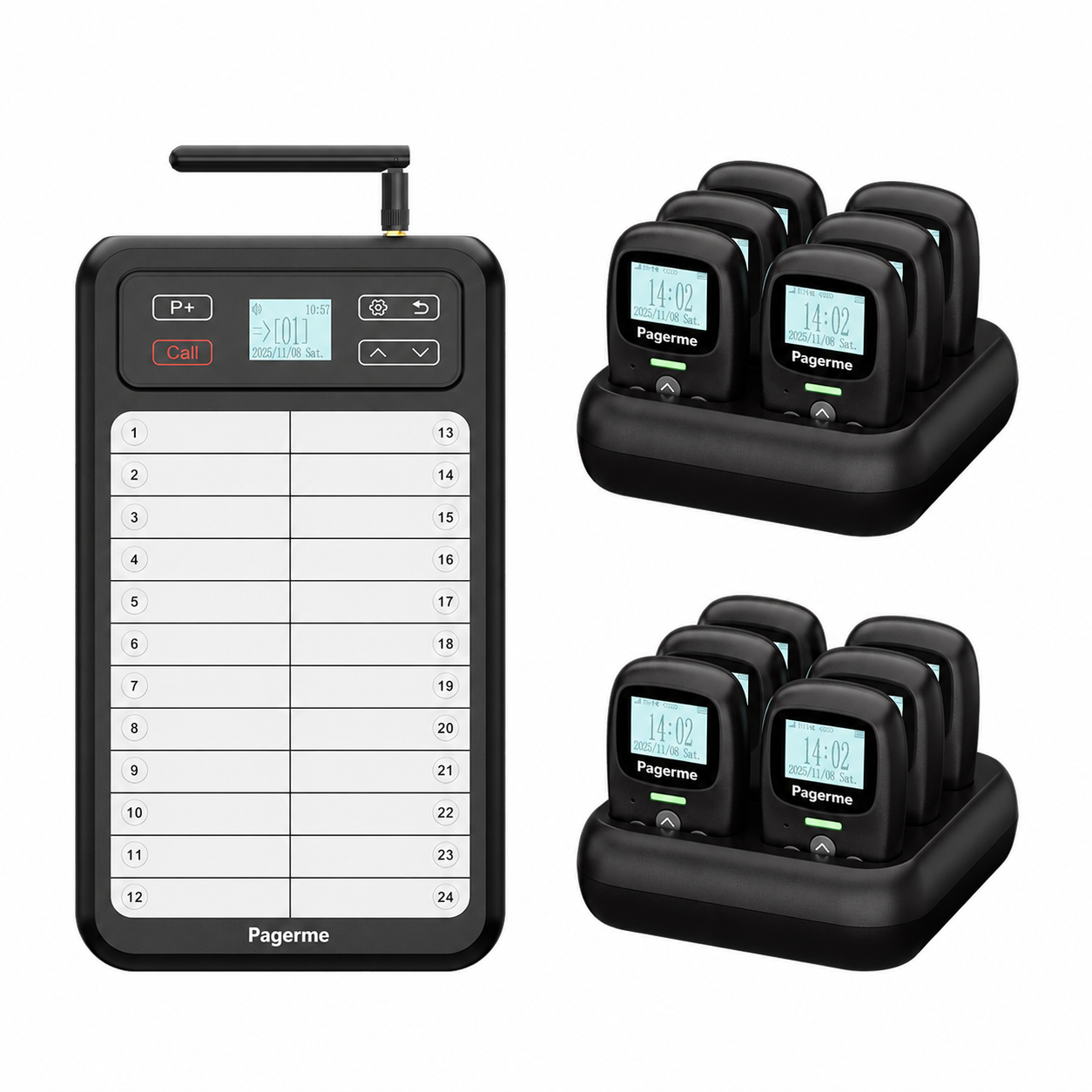

Option 1: 1 Transmitter + 6 Pagers
🧾 1 × Writepad Transmitter 📟 6 × Waist-Mounted Receivers 🔋 1 × Six-Way Charging Base 🔌 1 × DC Dual-Interface Adapter Cable 📡 1 × Antenna 🔗 6 × Type-C Data Cables 🔌 1 × DC Power Adapter 📖 1 × User Manual
Asaving Limited has proudly supplied wireless paging and calling systems across New Zealand and Australia for over 10 years, trusted for practical communication, faster workflow, and reliable service support.
✨ Key Features
📟 Writepad Transmitter for Precise Staff Calls The transmitter includes a writable PVC name board, allowing staff names or roles to be written clearly. Simply write the name, press the correct button, and call the right team member instantly.
👨🍳 Improves Kitchen Workflow Ideal for busy restaurants where chefs, servers, and waitresses need quick communication without shouting, delays, or confusion.
🔢 Supports Up to 99 Receivers A scalable system suitable for small cafés through to large restaurants, food courts, hotels, and multi-zone service teams.
📡 800m+ Communication Range Reliable long-distance wireless transmission in open visibility areas, suitable for large venues and commercial environments.
🔔 Multiple Alert Methods Receivers support beep, vibration, light indicator, and LCD display notifications, helping staff notice calls even in noisy environments.
👥 Individual & Group Call Modes Call one staff member directly or send group calls when multiple staff need to respond at the same time.
💡 Backlit LCD Display Clear 1.4-inch monochrome LCD display provides excellent visibility in bright or low-light kitchen environments.
🧾 Call Log Function View up to 10 recent call records, listed from newest to oldest, making it easier to track missed or repeated calls.
🔄 Handles Multiple Transmitters If two transmitters call at the same time, messages are displayed in queue order, reducing missed communication.
⚡ Plug & Play Setup The system comes pre-paired and ready to use straight out of the box. No complicated installation required.
💻 PC Connectivity for Custom Settings Customize ID numbers, receiver names, group calls, timed alerts, and transmitter settings using computer connectivity.
🔋 Rechargeable Waist Receivers Each receiver includes a 3.7V 550mAh lithium battery, with long standby performance and convenient charging.
💧 IP54 Protection Helps protect against oil, water, and splashes, making the system suitable for demanding kitchen environments.
⚙️ Technical Specifications
Writepad Transmitter – WCS101
Size: 281 × 162 × 38 mm, without antenna Power Adapter: 12V / 1A Standby Current: 50mA Maximum Operating Current: 890mA Transmit Power: 10mW Max Key Mode: 6 touch buttons + 24 mechanical buttons Display: 1.4-inch monochrome LCD Interface: Type-C interface + DC012 power interface Reminder Method: Buzzer Communication Range: Open visibility over 800m Modulation Method: OOK / AM Communication Frequency: 433.92MHz ± 300KHz Volume: ≥70dB
Waist-Mounted Receiver – WCS114
Size: 90 × 45 × 35 mm, including back clip Power Adapter: 5V / 0.3A Standby Current: 6.6mA Standby Time: Over 66 hours Charging Current: 220mA Charging Time: Approx. 2.5–3.5 hours Maximum Operating Current: 177mA Key Mode: 4 mechanical buttons Display: 1.4-inch monochrome LCD Interface: Electrode contacts + Type-C interface Battery: 3.7V 550mAh lithium battery Reminder Method: Beep / Vibration / Light / LCD Display Communication Range: Open visibility over 800m Modulation Method: OOK / AM Communication Frequency: 433.92MHz ± 300KHz Receiving Sensitivity: -110dBm Volume: ≥85dB
Six-Way Charging Base
Size: 145 × 135 × 40 mm Power Adapter: 12V / 2A Working Current: 890mA Interface: DC012 power interface × 2 Charging Slots: 6 Expandable Charging: Charging bases can be cascaded, up to 2 bases
💡 Why Choose WCS101 WCS114?
✔️ Faster communication between kitchen and service staff ✔️ Reduces shouting, confusion, and missed orders ✔️ Professional system for restaurants, cafés, hotels, and food courts ✔️ Writable transmitter board for clear staff identification ✔️ Long-range wireless signal for large venues ✔️ Rechargeable waist pagers for all-day operation ✔️ Multiple alert modes: beep, vibration, light, and display ✔️ Scalable system supporting up to 99 receivers ✔️ Plug & play setup with no complicated installation
👉 Upgrade your restaurant workflow today with the WCS101 WCS114 Kitchen & Staff Pager System – the smarter way to connect your kitchen, waitresses, servers, and service team.
