🔊 CALL SMART WITH THE PAGERME SYSTEM

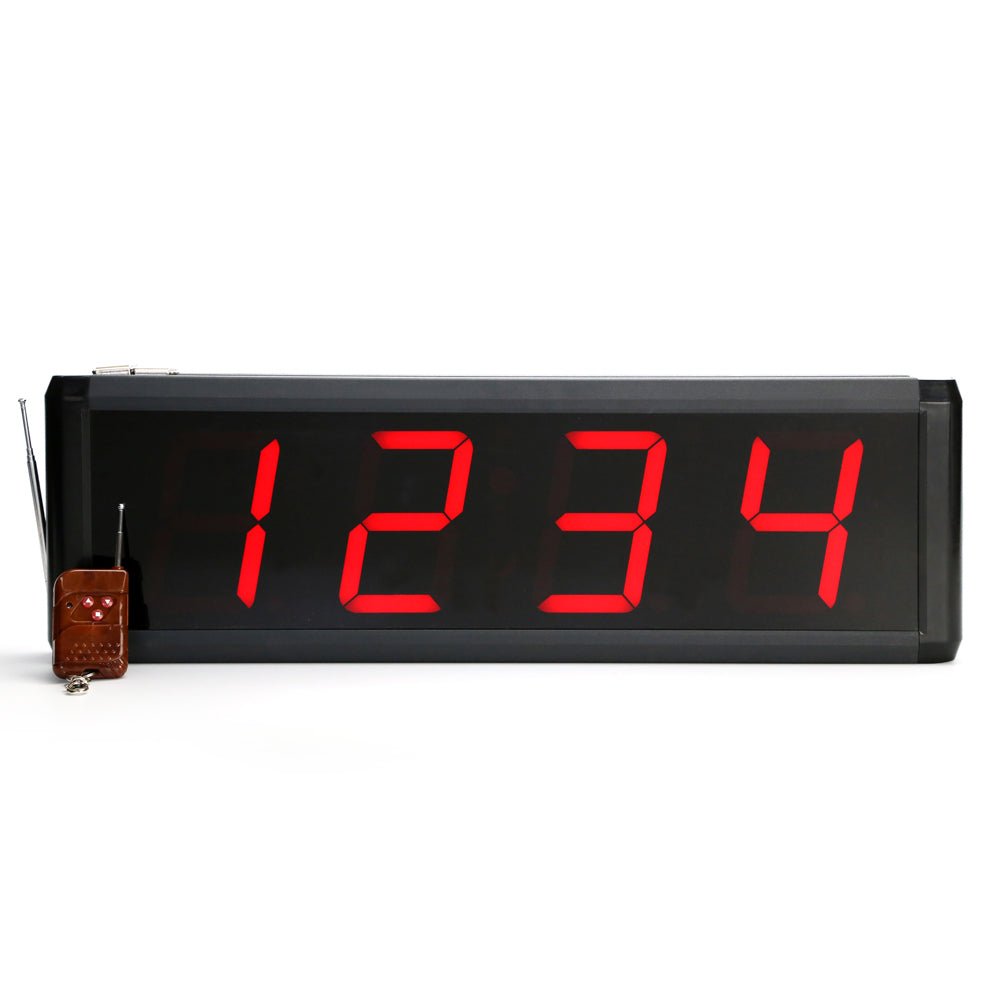

WCS02L Display Receiver – 4-Digit LED Call Screen with Clock Function

✅ Fully Wireless – No Cabling Required
📦 NZ Stock – Fast Local Delivery
🛡️ 2-Year Warranty
🕐 Built-in Clock Display
🔗 Pairs with up to 1280 Call Buttons
📱 No Internet or Phone Lines – Zero Monthly Fees

---

📑 Overview

The Pagerme WCS02L is a wide-format display receiver that shows call numbers in big 4-inch red LED digits — and displays the time between calls, so it earns its place on the wall all day. With capacity for up to 1280 call buttons and a 4-digit display, it suits larger venues, food courts, multi-room clinics, and factories where call numbers run beyond two digits.

---

🚀 Key Features

🔢 4-Digit Red LED Display

4-inch digits readable across large rooms – call numbers up to four digits appear instantly, so it scales to any numbering scheme your venue uses.

🕐 Clock Function

When no calls are active, the screen shows the current time – a wall display that stays useful every minute of the day.

🔗 Huge Capacity – Up to 1280 Call Buttons

One receiver supports up to 1280 calling pagers/buttons – ample headroom for hospitals, factories, and multi-floor facilities.

📖 Call Queue Memory

Stores up to 15 calling numbers in the queue during busy periods – no call gets lost.

📡 Strong, Reliable Reception

−110 dBm receiving sensitivity delivers dependable alerts throughout your venue.

💪 Sleek Wide-Format Build

505mm black aluminium frame – professional appearance and built to last, designed for wall mounting.

---

🌍 Perfect For

🍽️ Large Restaurants • 🍜 Food Courts • 🏥 Clinics & Hospitals • 🏭 Factories • 📦 Warehouses • 🏢 Multi-Room Facilities • 🛎️ Service Counters

Works with the Pagerme WCS range of wireless call buttons — see our Wireless Calling System collection to build your complete setup.

---

⚙️ Technical Specifications

Model	WCS02L
Dimensions	505 × 159 × 40 mm
Display	4 digits, red LED, 4 inches, with clock function
Capacity	Up to 1280 calling pagers/buttons
Storage	15 calling numbers
Frequency	315 MHz or 433.92 MHz
Power	AC 220V 50/60Hz
Sensitivity	−110 dBm
Material	Aluminium frame, black

---

❓ FAQ

Q: How does the WCS02L work?
A: Pair it with wireless call buttons at tables, rooms, or workstations. When a button is pressed, its number instantly appears on the display in big red digits – and between calls, the screen shows the time.

Q: How many call buttons can I connect?
A: Up to 1280 buttons/pagers on one display – our largest-capacity receiver.

Q: What happens if several stations call at once?
A: The display queues up to 15 calls so staff can work through them in order.

Q: When would I choose WCS02L over the WCS99?
A: Choose the WCS02L when you need call numbers above 99, a bigger button capacity, or the clock function for an always-useful wall display.

---

💡 Why Choose Pagerme?

✔️ Faster staff response – happier customers
✔️ Fully wireless installation in minutes
✔️ Largest capacity in our display range – 1280 buttons
✔️ Reliable, professional & cost-effective

---

👉 Build your calling system today with the Pagerme WCS02L Display Receiver – trusted across New Zealand & Australia since 2008.
