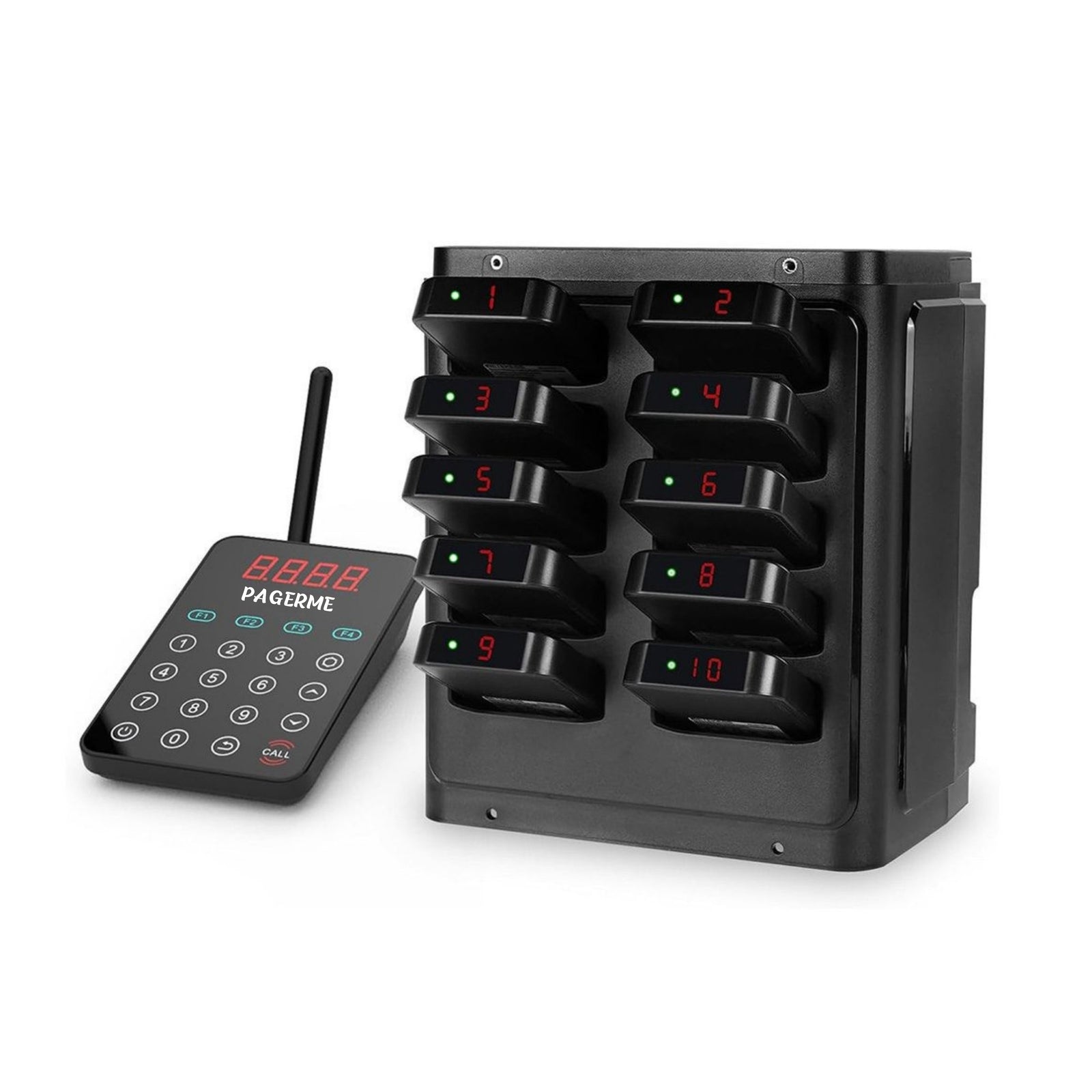

📟 PAGER SMART WITH THE PAGERME SYSTEM

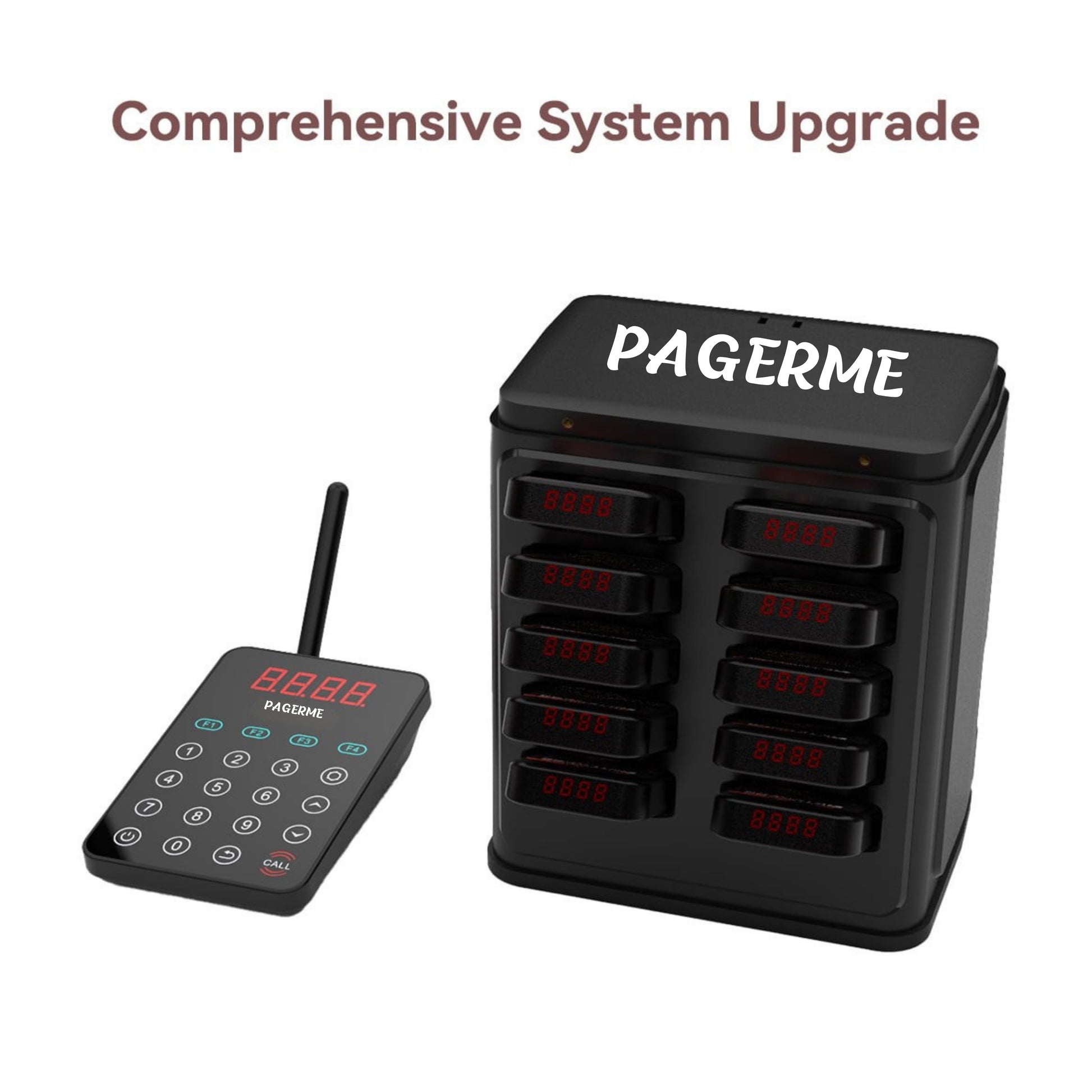

WPS177 Matrices Paging System – Comprehensive Upgrade

Wall-Mountable Wireless Pager System for Restaurants, Clubs & Entertainment

✅ 2-Year Warranty
📦 NZ Stock in Auckland – Free Shipping
🌏 Top-Rated Paging System in NZ, AU & US
🛡️ AU/NZ Compliance Certified
⚡ Ready to Use – No Setup Required
📡 500m Line-of-Sight Range
📱 No Internet / Phone Lines – Zero Monthly Fees
👌 Super Easy to Operate

---

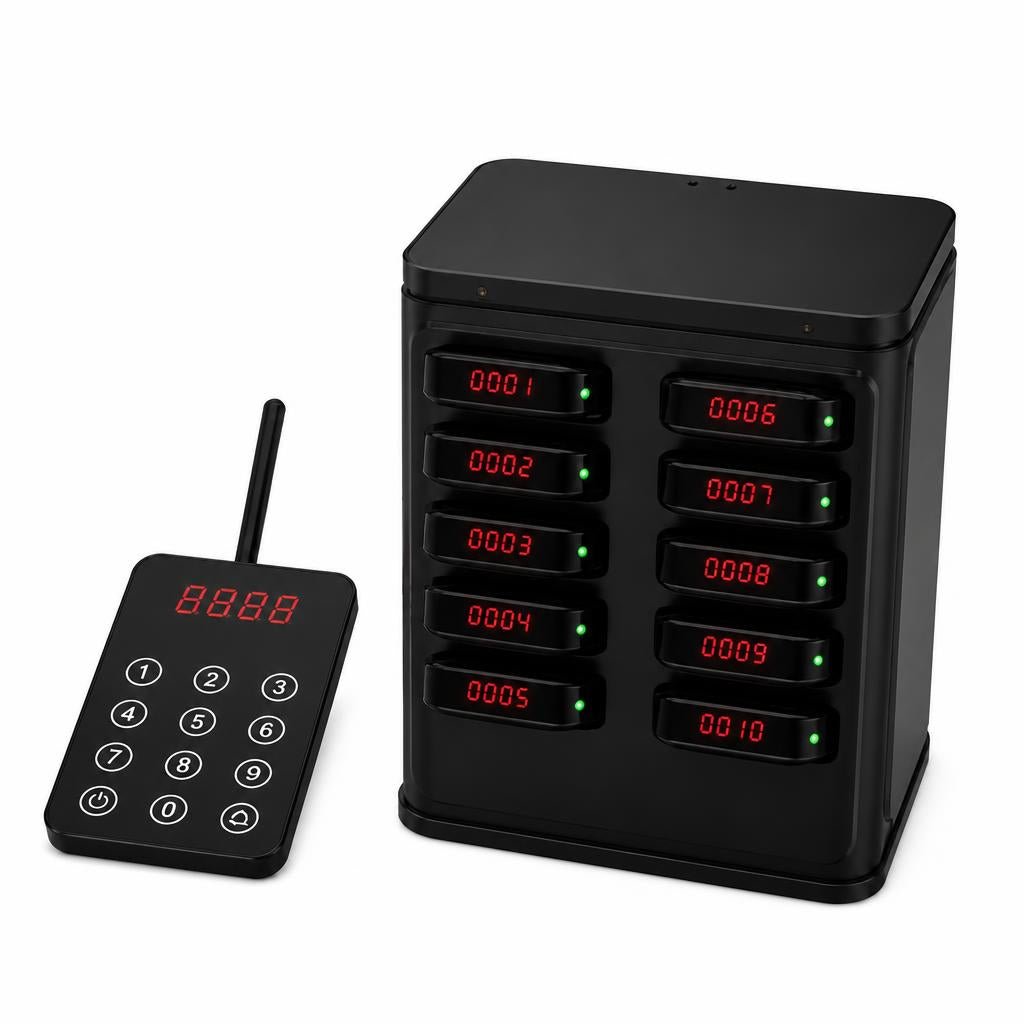

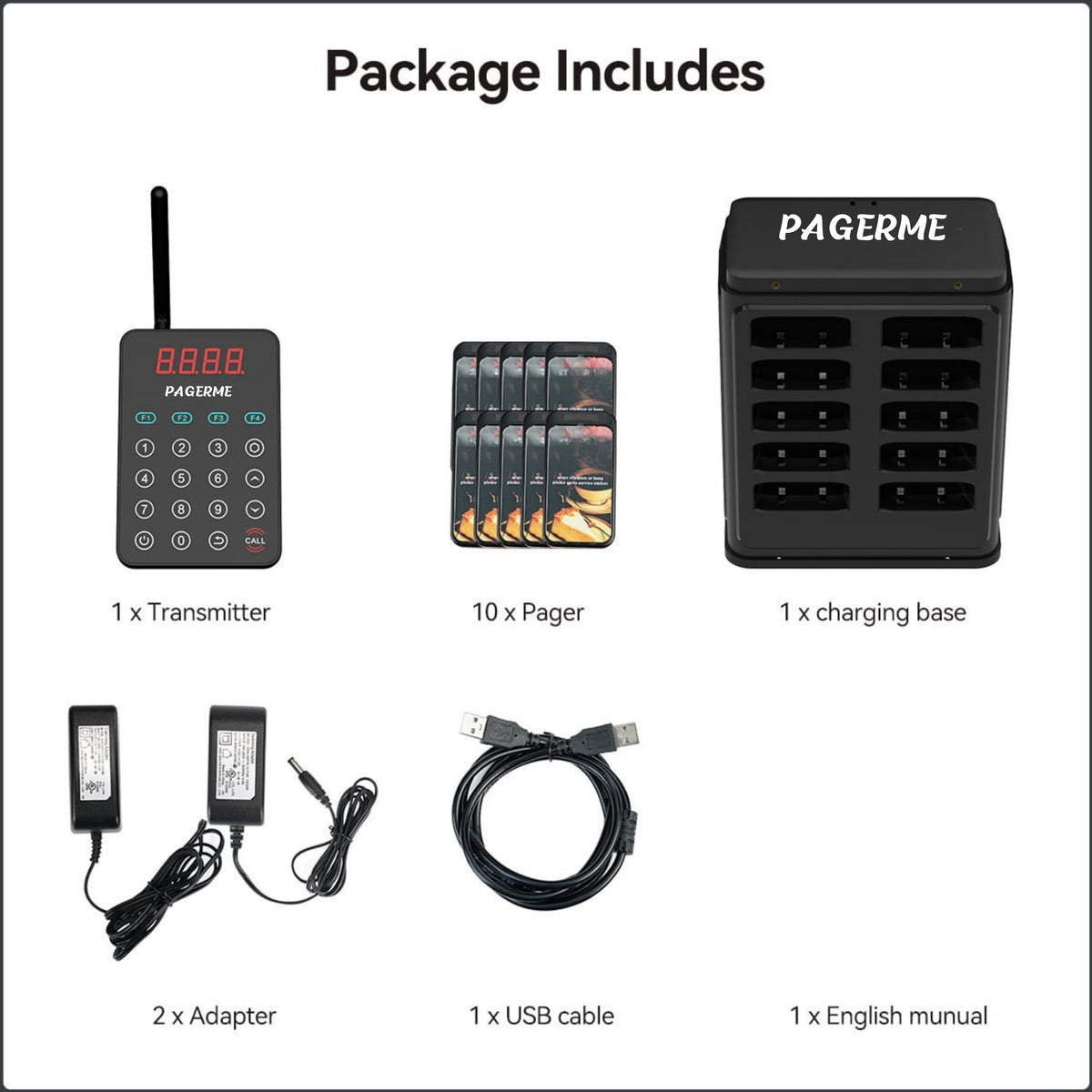

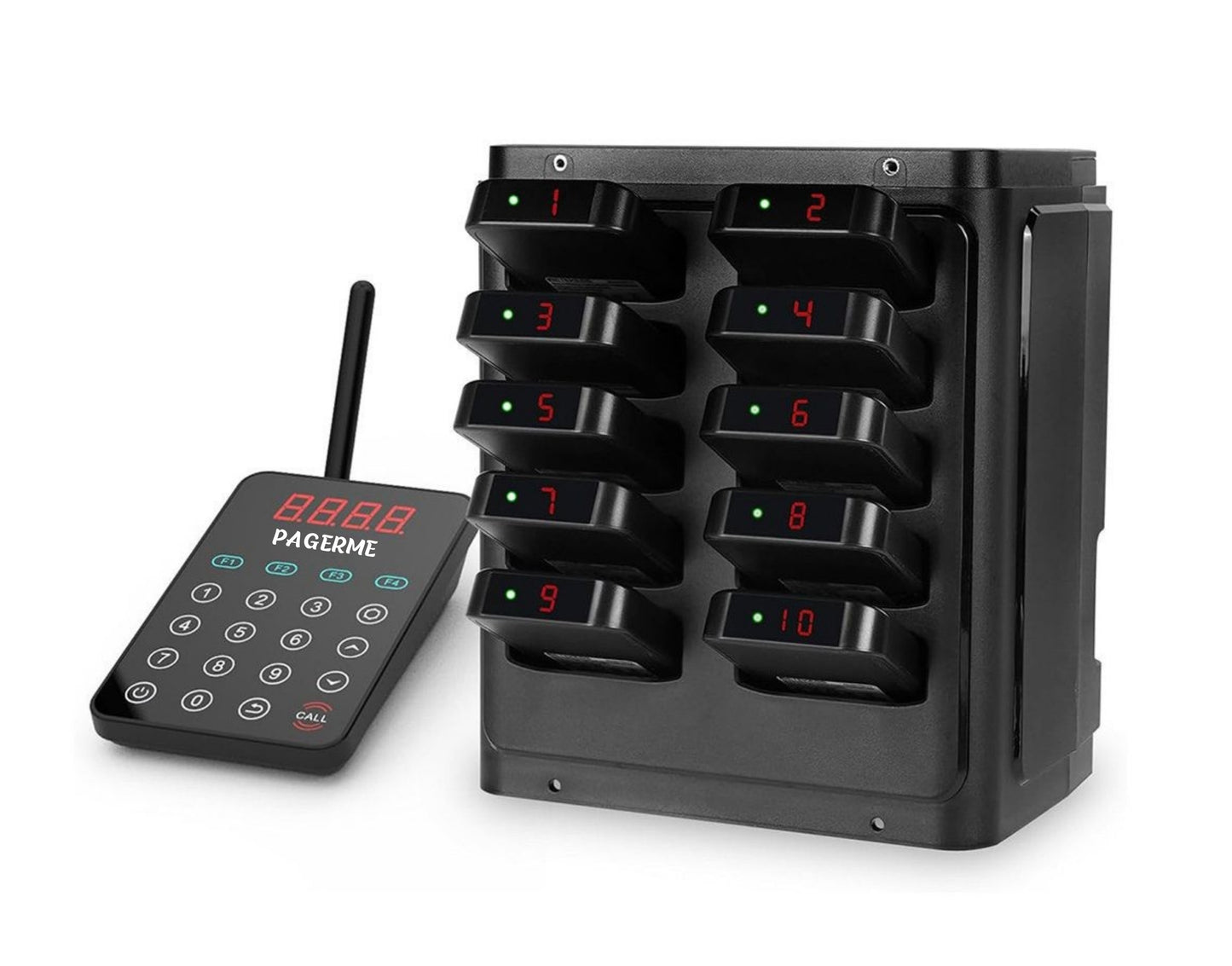

📦 Package Contents

• ⌨️ 1x Keyboard Transmitter
• 🔲 Pagers per your selected option (10–999) – contact us for larger quantities
• 🔋 Power Adaptor
• 🔌 Charging Base
• 📖 English Manual

---

🌍 Versatile Use

Ideal for:
🍽️ Restaurants & Cafés • 🏨 Hotels & Resorts • 🏥 Hospitals & Emergency Centers • 🏢 Banks & Offices • 🏫 Schools • 🏗️ Construction Sites • 🙏 Churches • 🎶 Clubs, Bars & Entertainment Venues

Since 2008, Pagerme has refined its patented paging technology to help businesses work faster, smarter, and more efficiently.

---

🚀 Key Features

⚡ One-Click Automatic Programming – Save Time Every Day

The WPS177 is our most advanced paging system yet – smarter, tougher, and easier to use than classic systems like the WPS112. No more pairing pagers one by one!

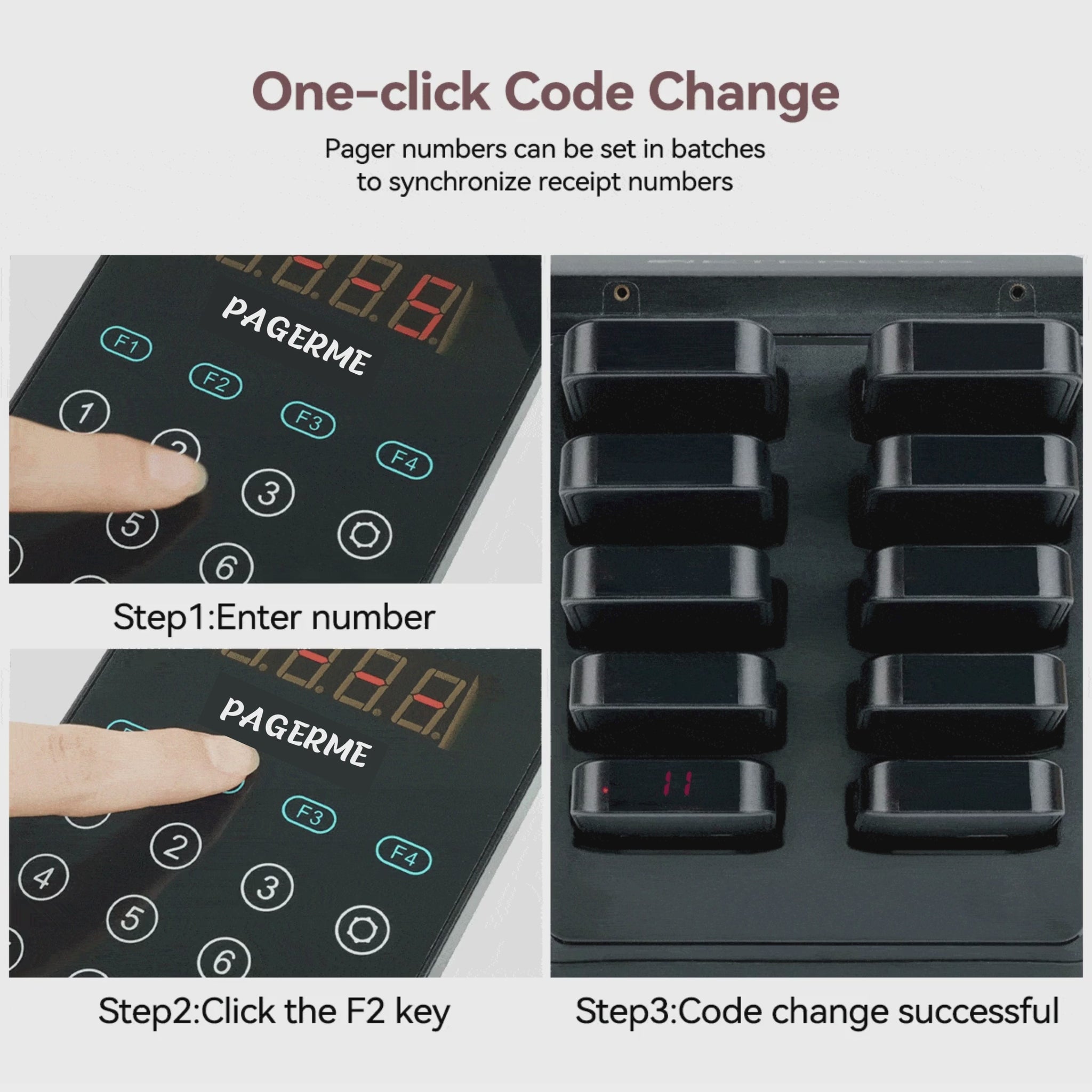

• 🔢 One-Click Number Change (F2): Change ALL pager ID numbers with a single key press – automatically sorted. No WiFi needed.
• 🔗 One-Click Pairing (F1): Pair every pager with the keyboard instantly. No tedious one-by-one setup.

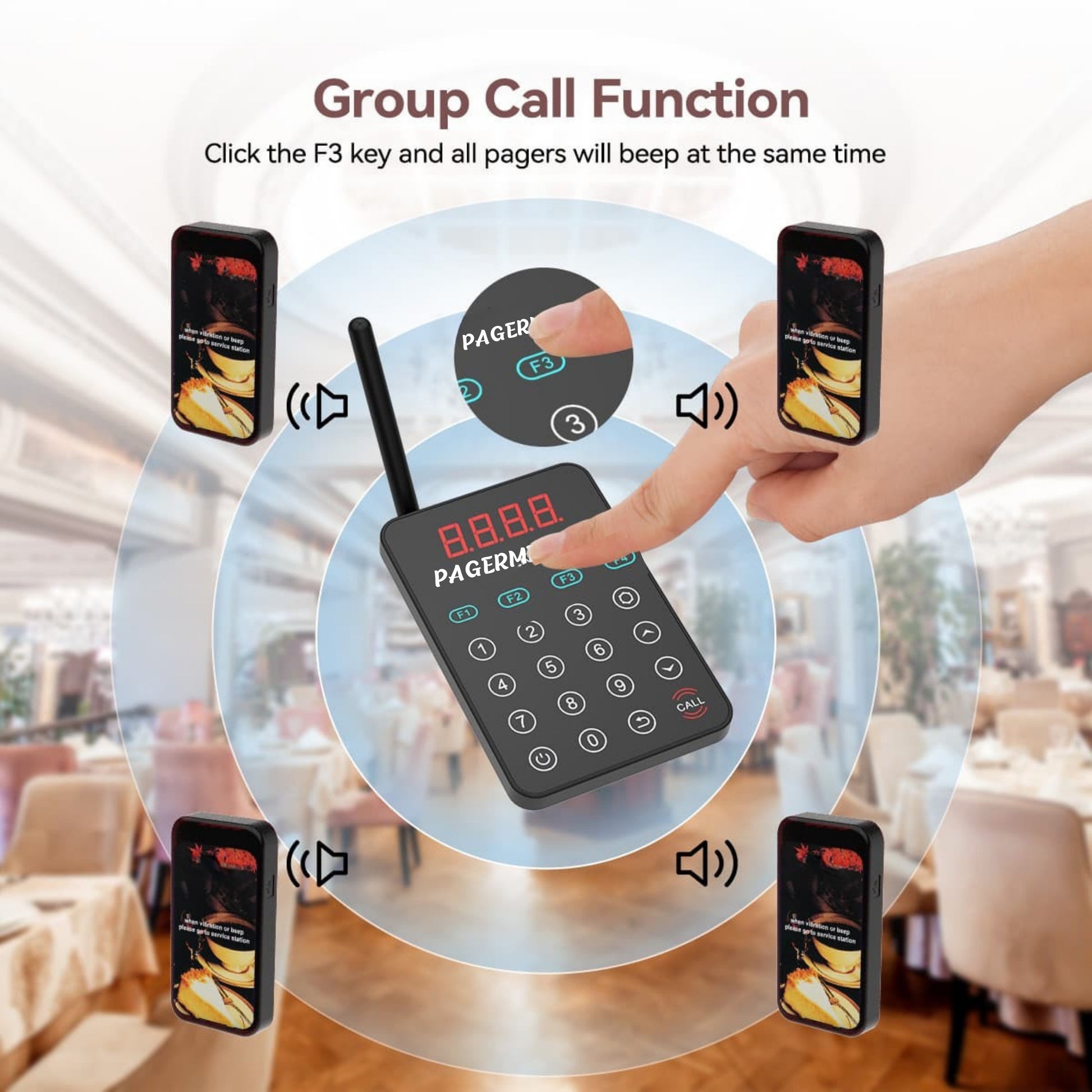

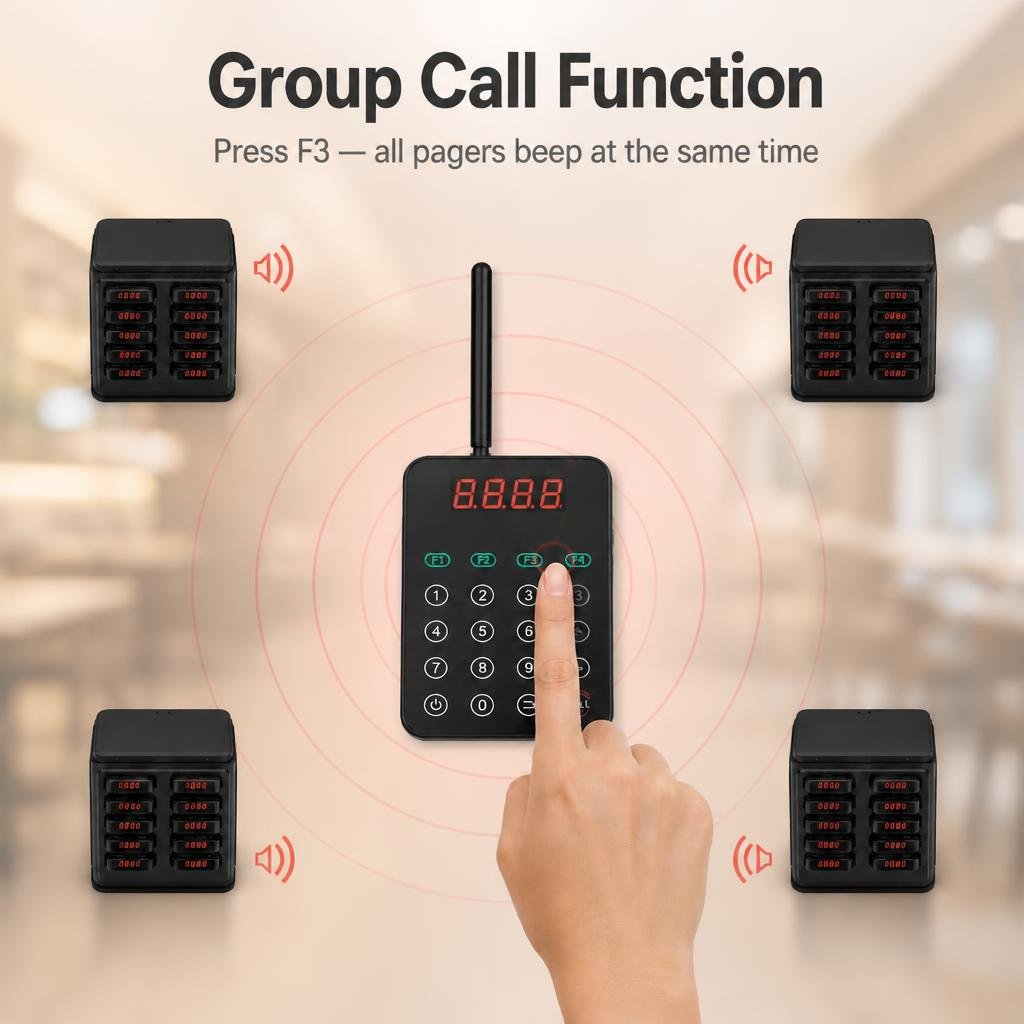

• 📣 One-Click Group Call (F3): Call all pagers at the same time – perfect for staff announcements or collecting pagers at closing time.
• 🔌 One-Click Shutdown: Power off the entire system with a single button for convenience and energy savings.
• ⭐ F4 Integrated Functions Key for advanced settings.

🔋 Long Battery Life

• Up to 25 hours use per charge.
• Full recharge in under 90 minutes.
• Pagers charge automatically when returned to the base.

🌐 Fully Contained System

• Works without WiFi, cell service, or phone lines.
• Reliable FM technology with 500m open-air range.

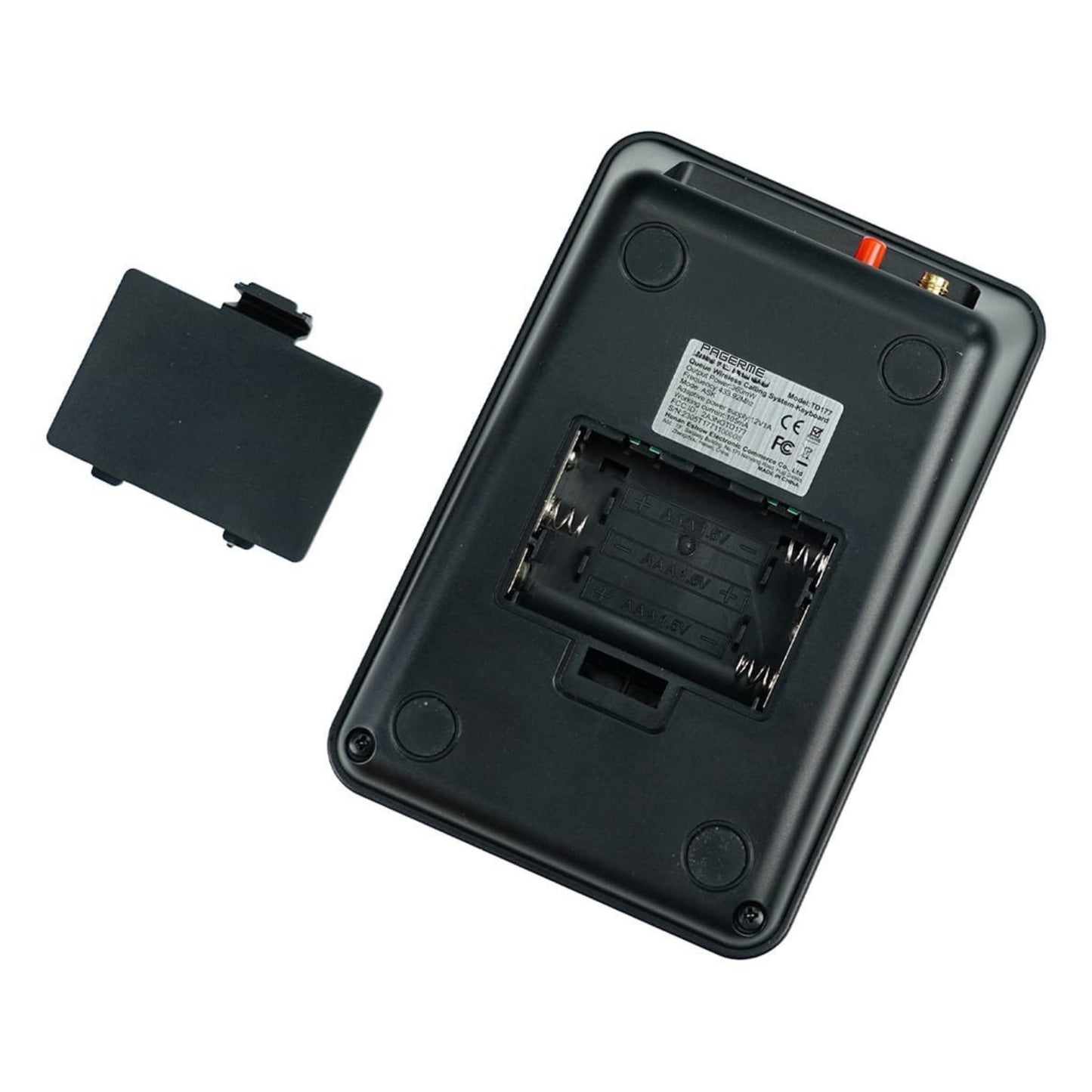

• Independent keyboard runs on 3x AAA batteries – move it freely anywhere in your venue, food truck, or bar.

🛡️ Smart Anti-Loss & Reminder Functions

• 🚨 Out-of-Range Alarm (3–30 min adjustable): If a customer walks off with a pager, it beeps until returned to the charging slot. Never lose a pager again!

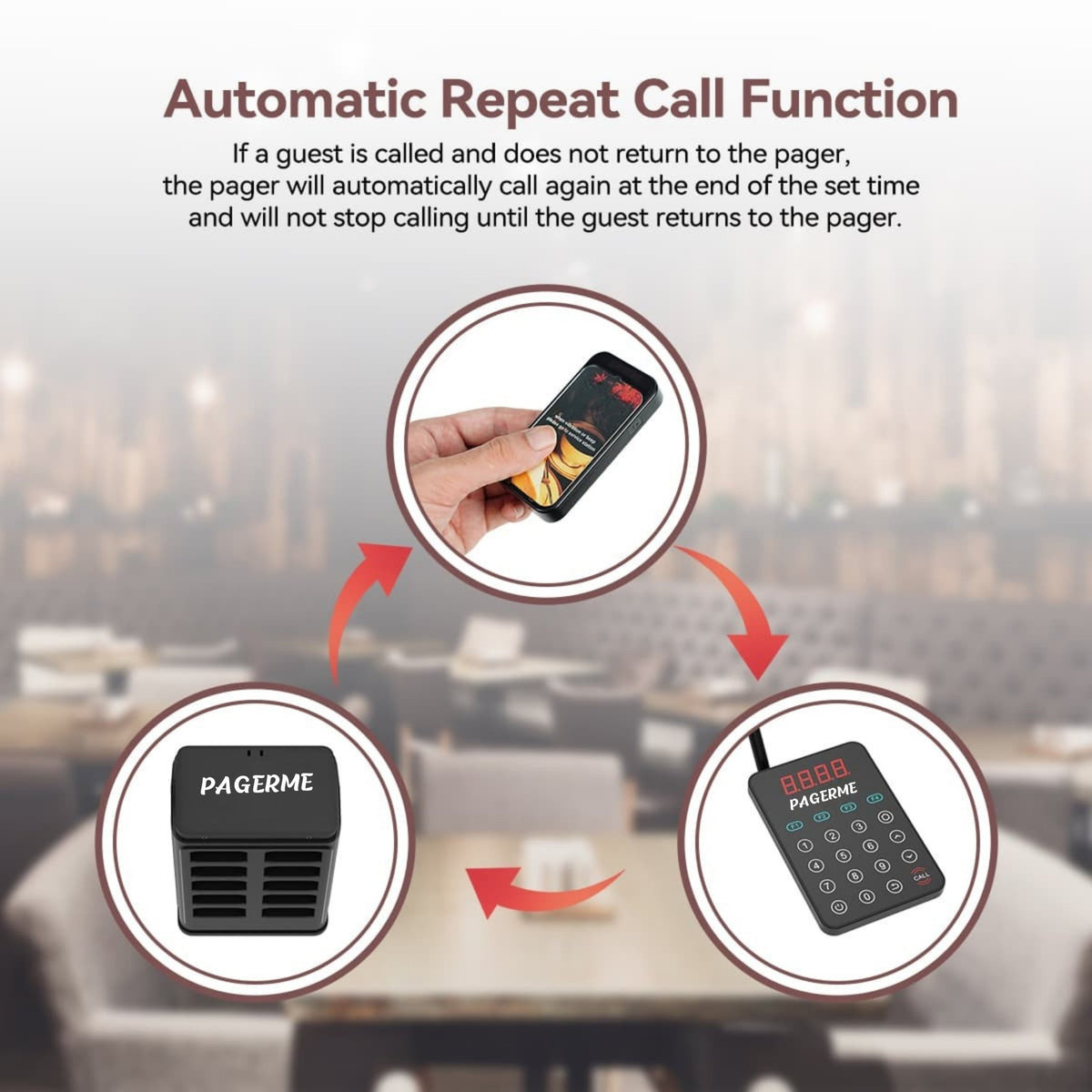

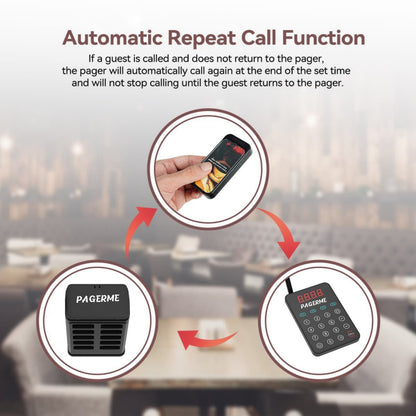

• 🔁 Automatic Repeat Call (0–90 min adjustable): If the customer misses the first call, the pager keeps reminding them until it's returned to the base.

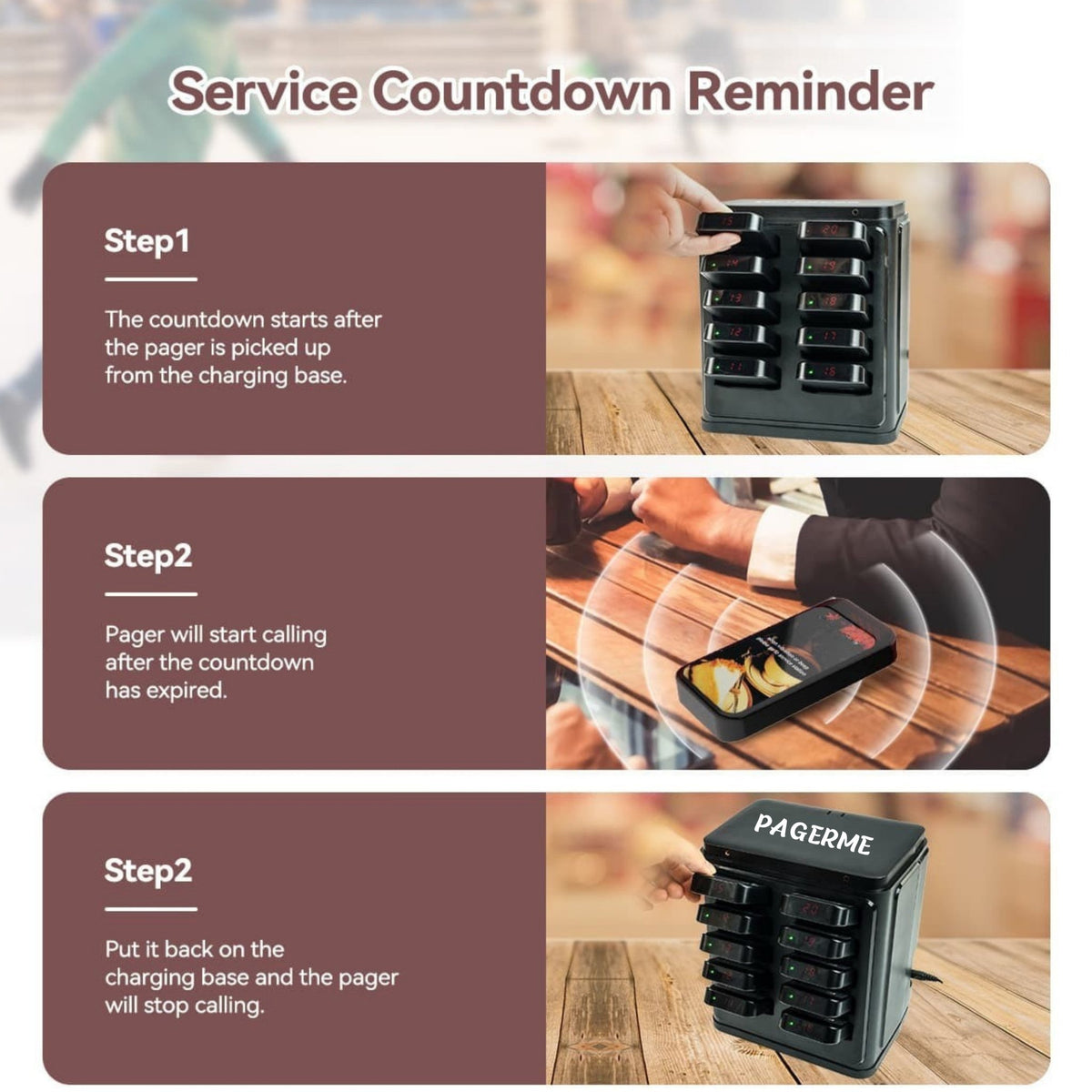

• ⏱️ Countdown / Service Timer (0–90 min adjustable): The pager counts down from pickup and beeps when time is up – perfect for timed services at amusement parks, clubs, and rental venues.

📖 Advanced Functions

• Up to 999 pagers supported (System ID adjustable 001–999).
• 7 alert modes (Vibration, Flash, Beep – freely combined).
• Group call & repeat call functions.
• One-key ID reset for all pagers.

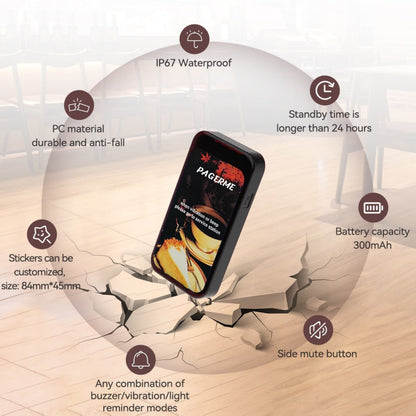

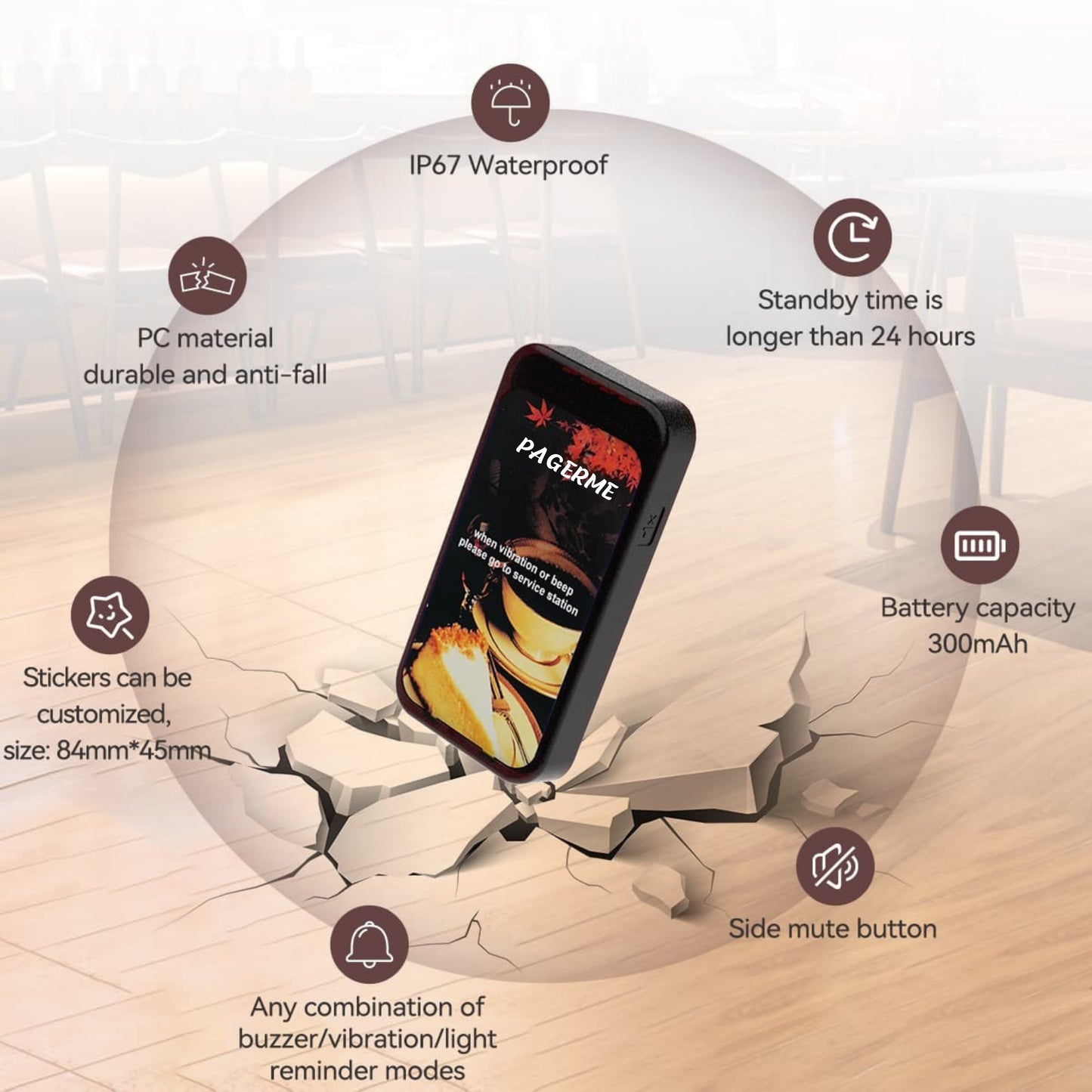

• IP67 Waterproof & Dustproof – drop-proof, oil-proof PC material built for busy kitchens.

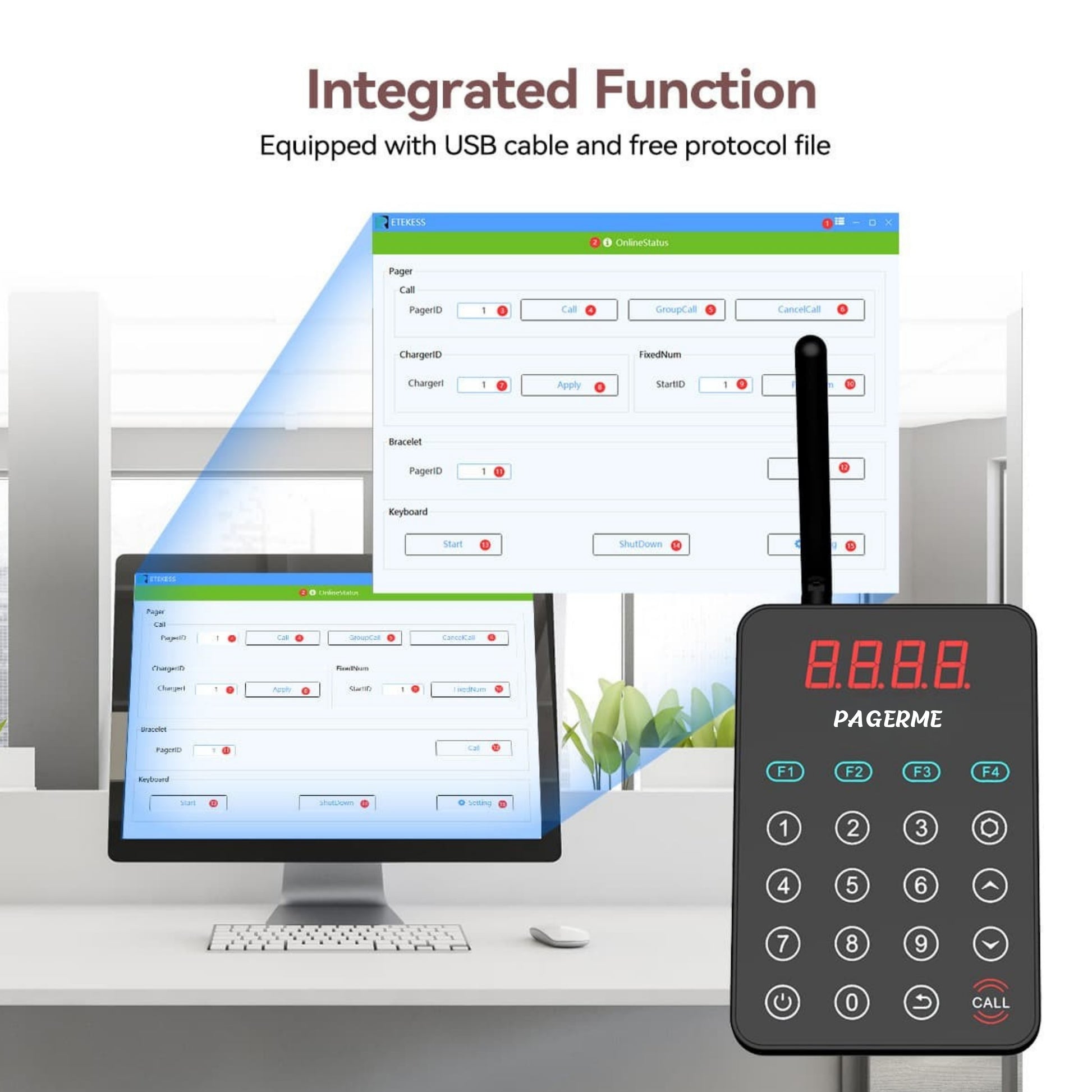

• USB integration – plug into a computer with the included cable; free protocol file provided.
• Works with the WPS112 wristband pager to call staff as well as guests.

🖥️ Upgraded Design

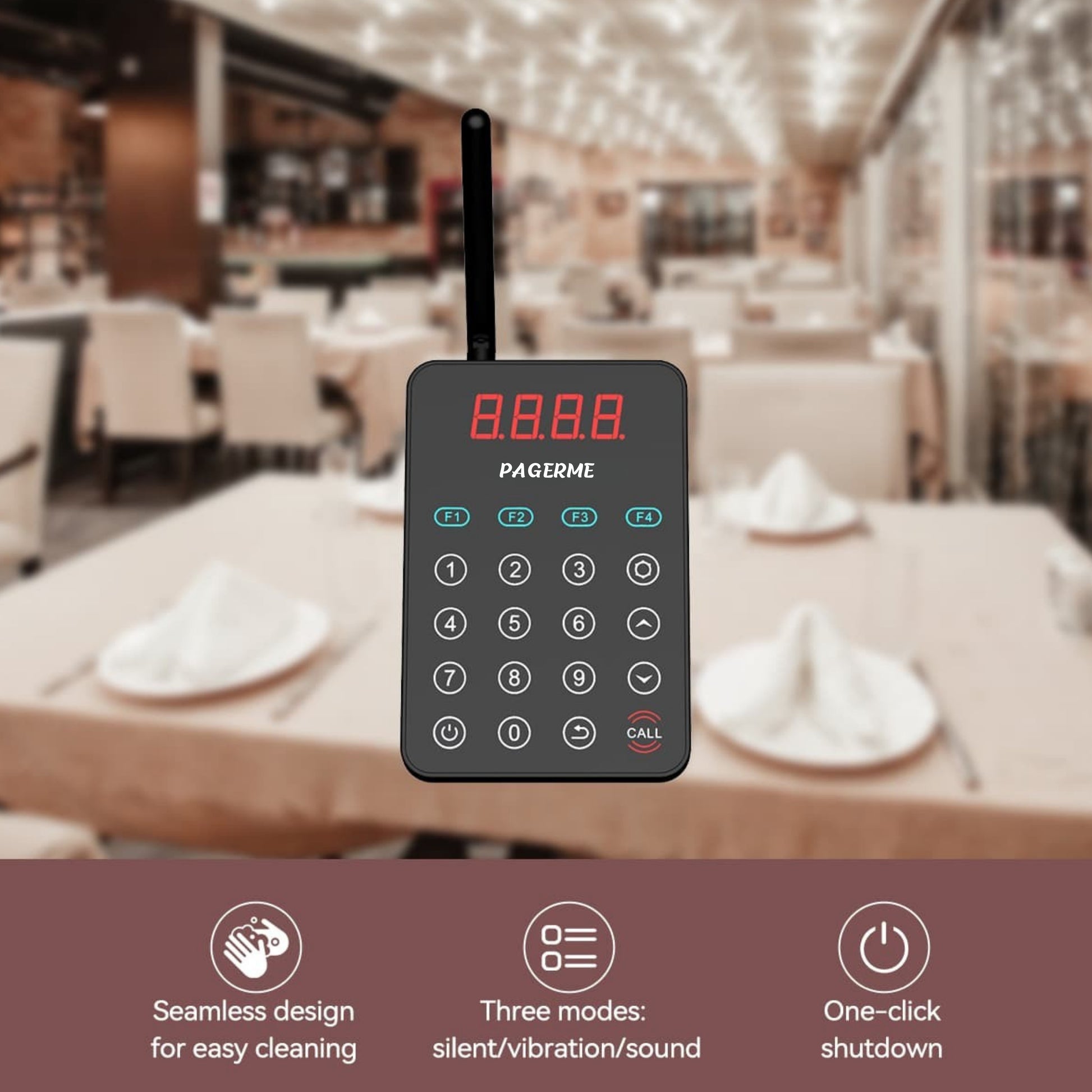

• Capacitive touch keyboard – waterproof, oil-proof, durable.

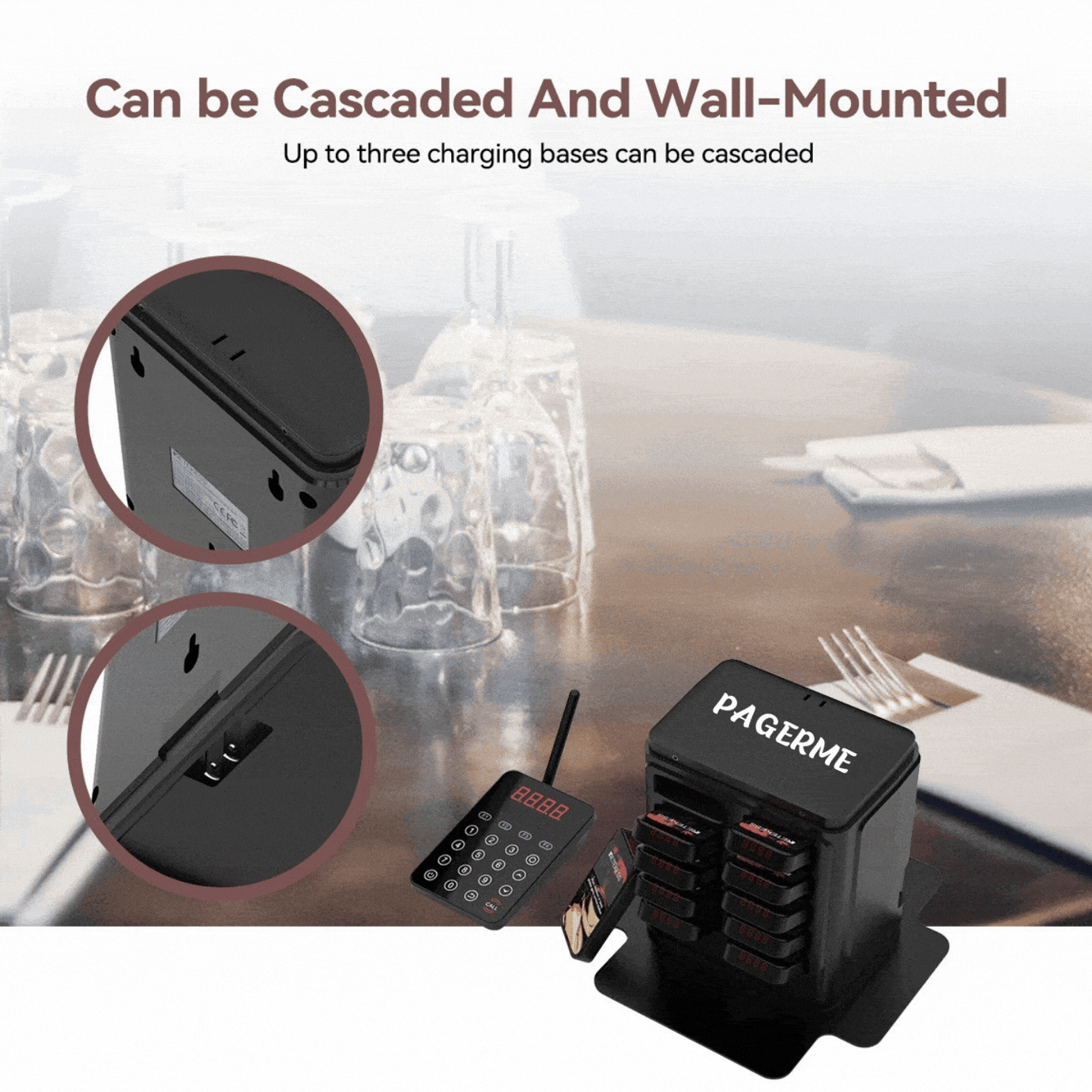

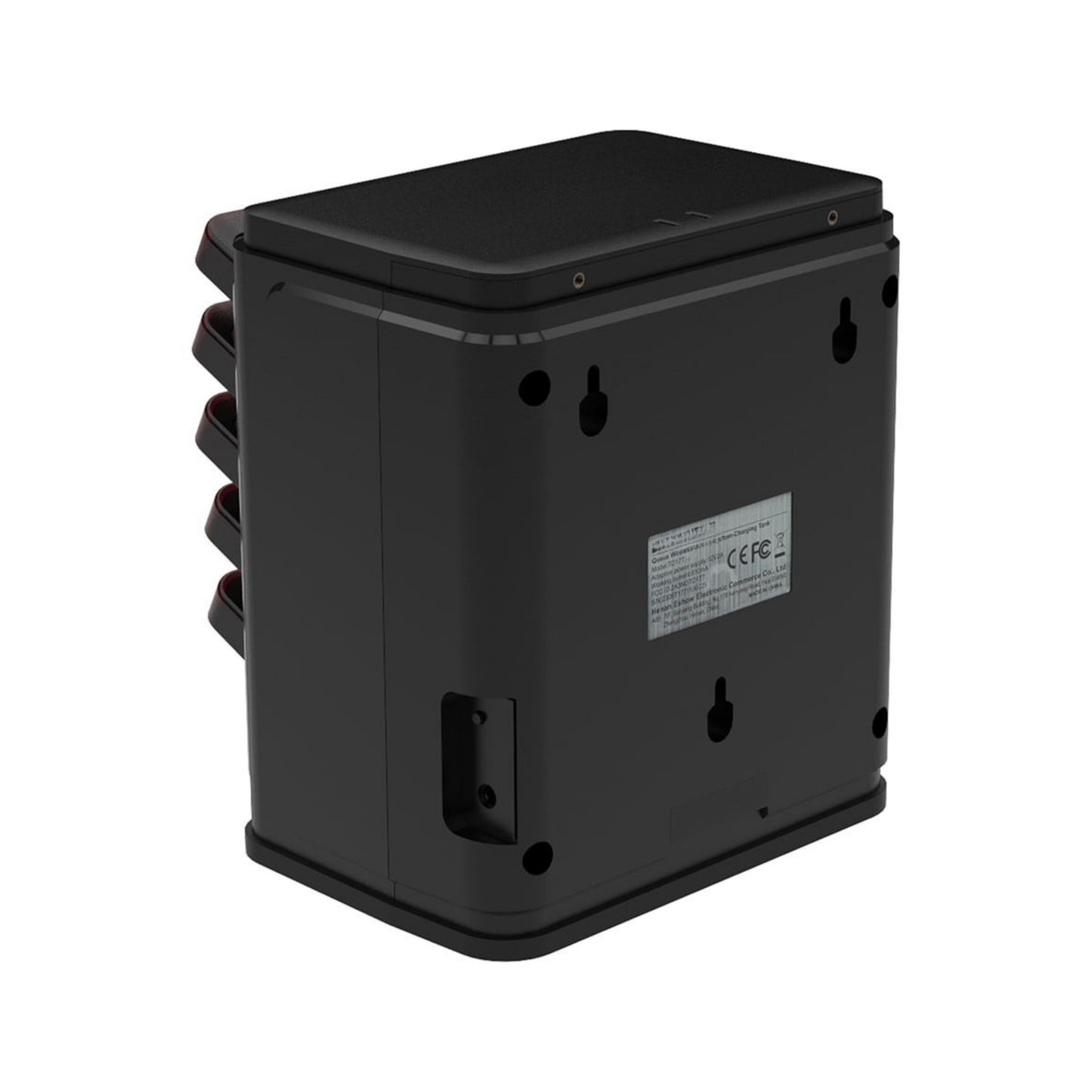

• Wall-mountable charging base – frees up counter space and keeps oil & dust out. Three mounting holes built in.

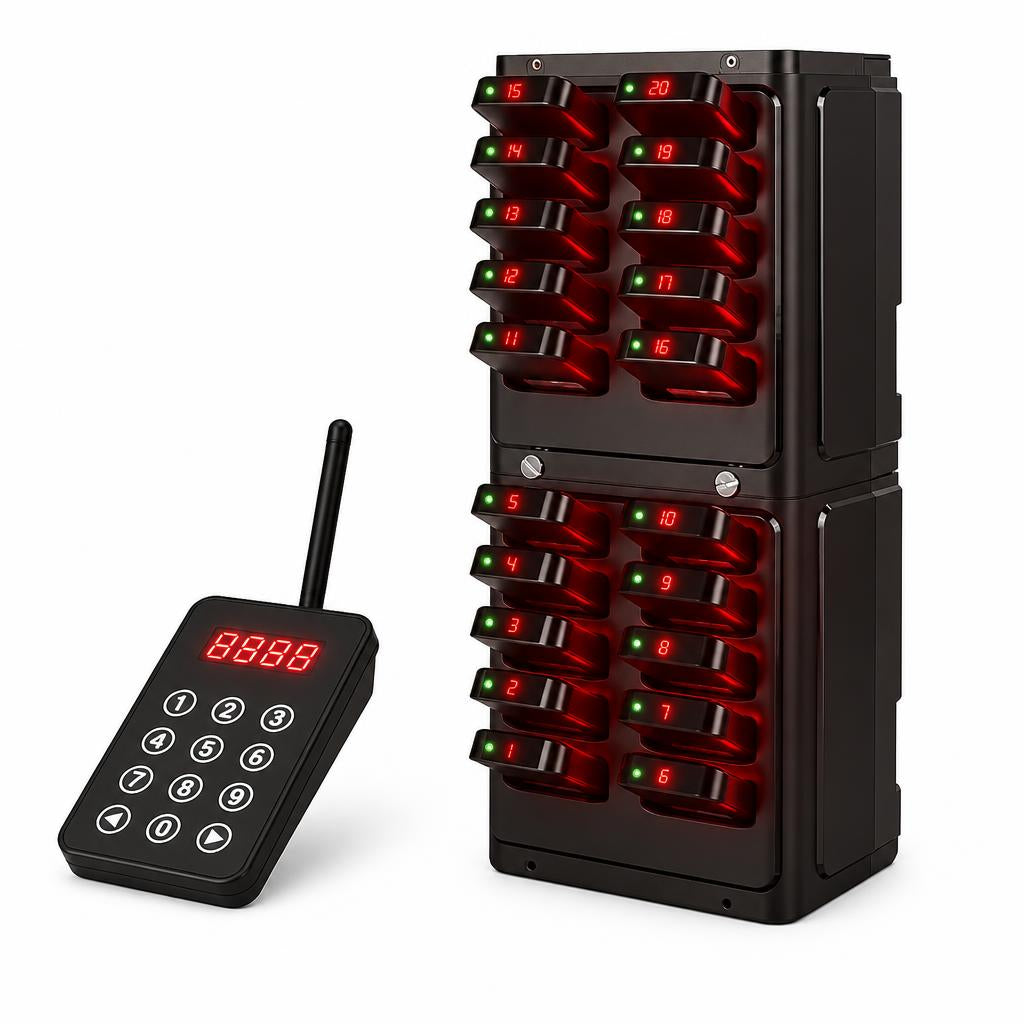

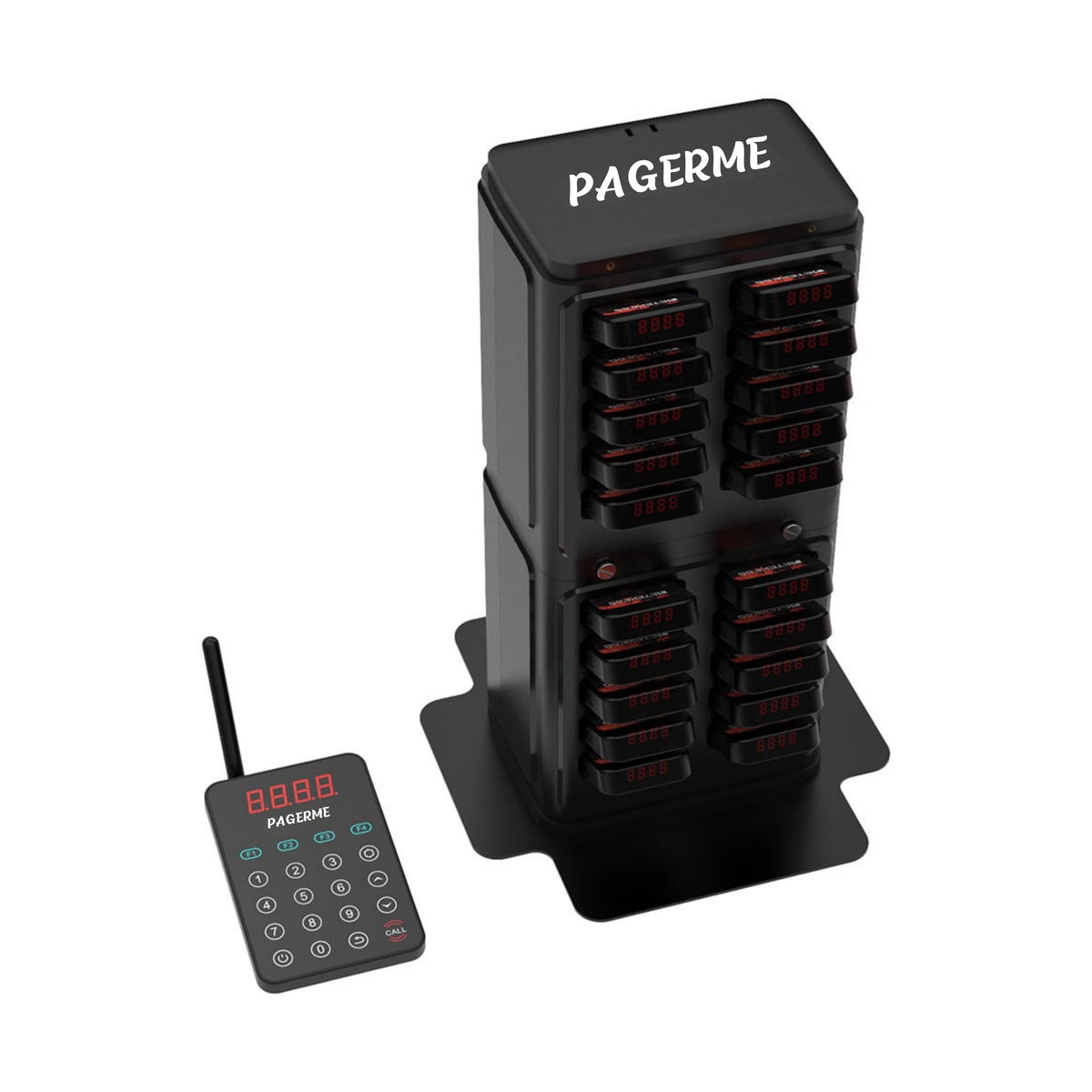

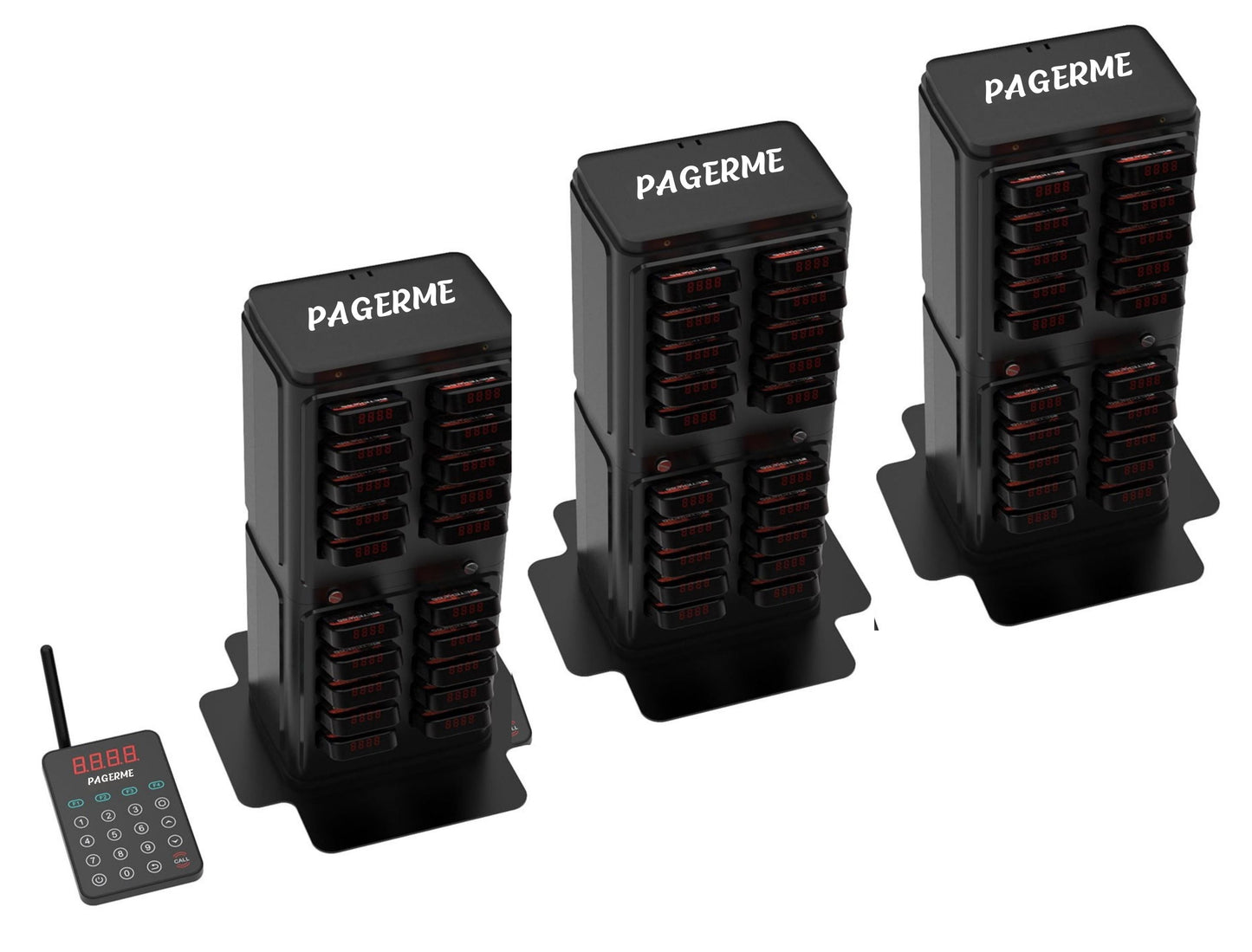

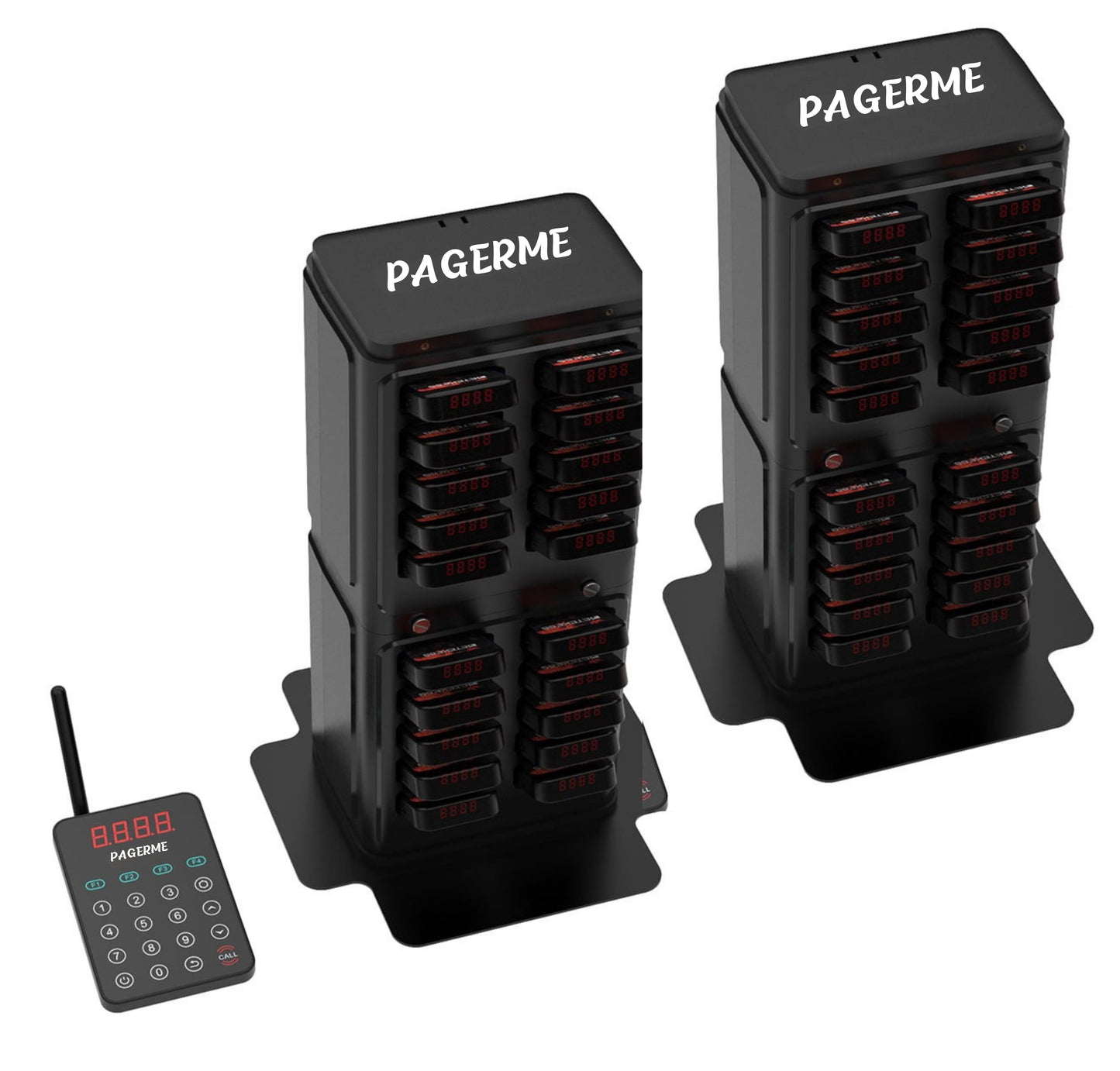

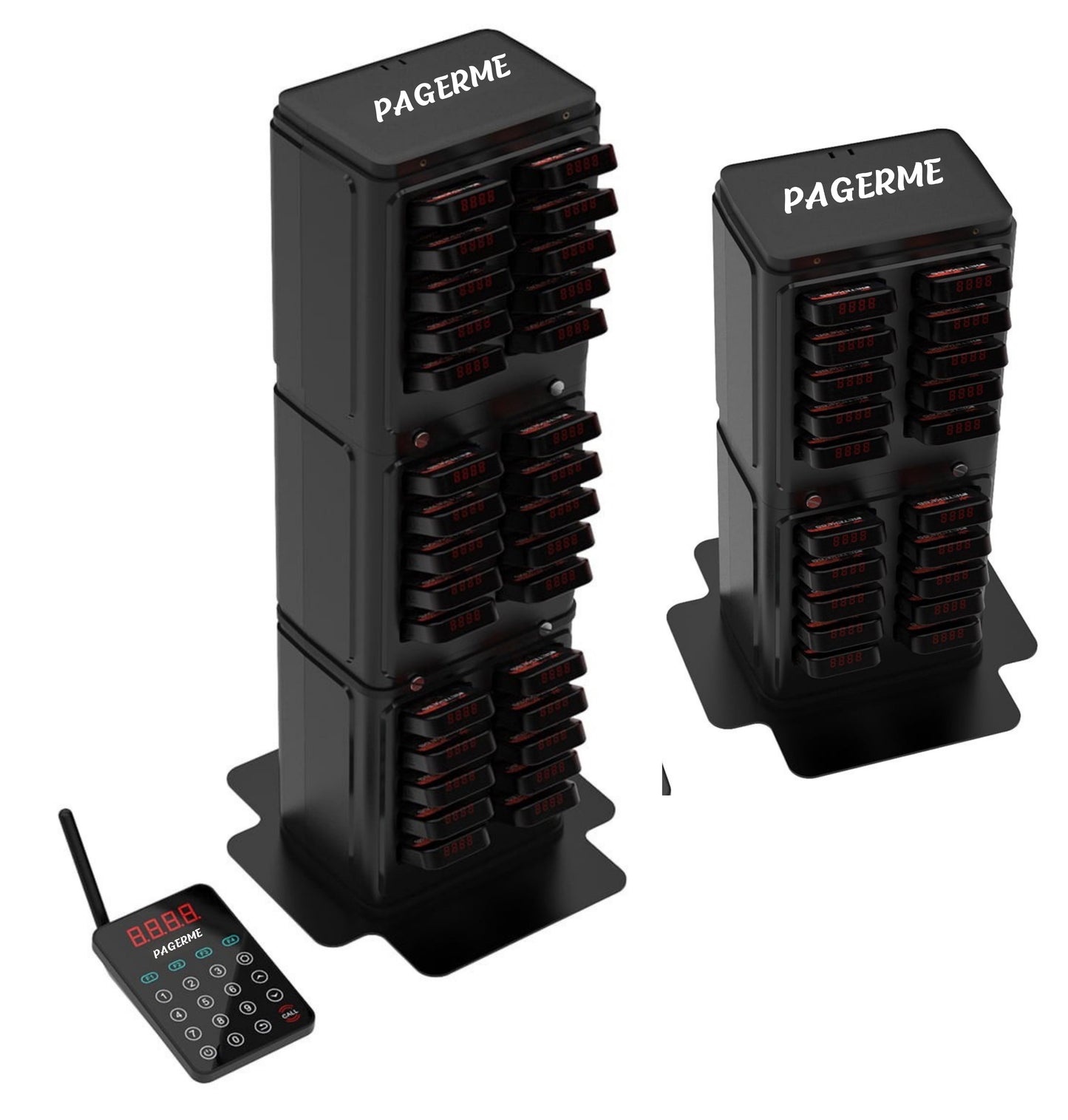

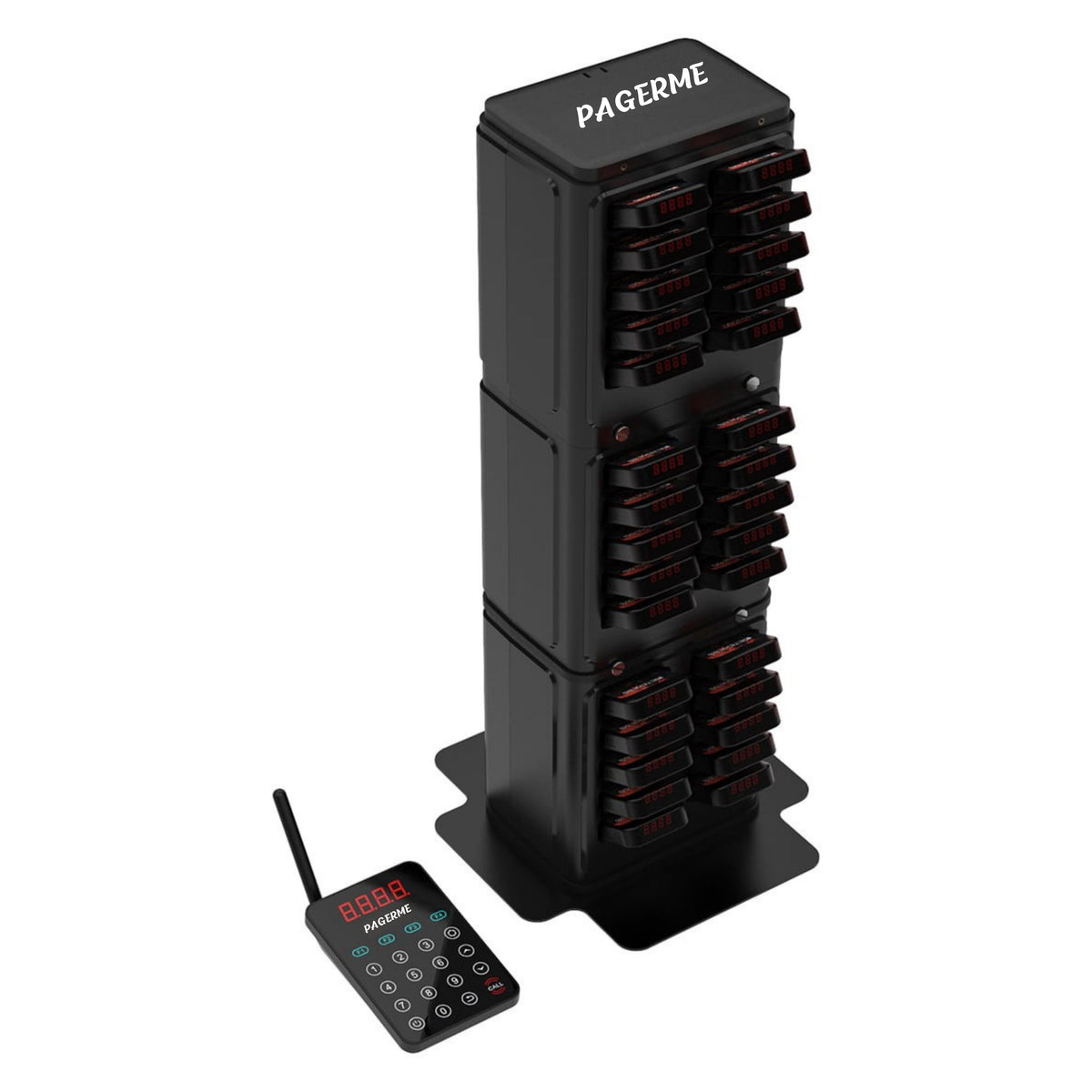

• Stackable bases – cascade up to 3 charging bases for larger venues.
• Slim, drop-proof pagers with strong vibration and clear ID display.
• Replaceable sticker slots (84×45mm) – add your own logo and promote your brand while customers wait!

---

⚙️ Technical Specifications

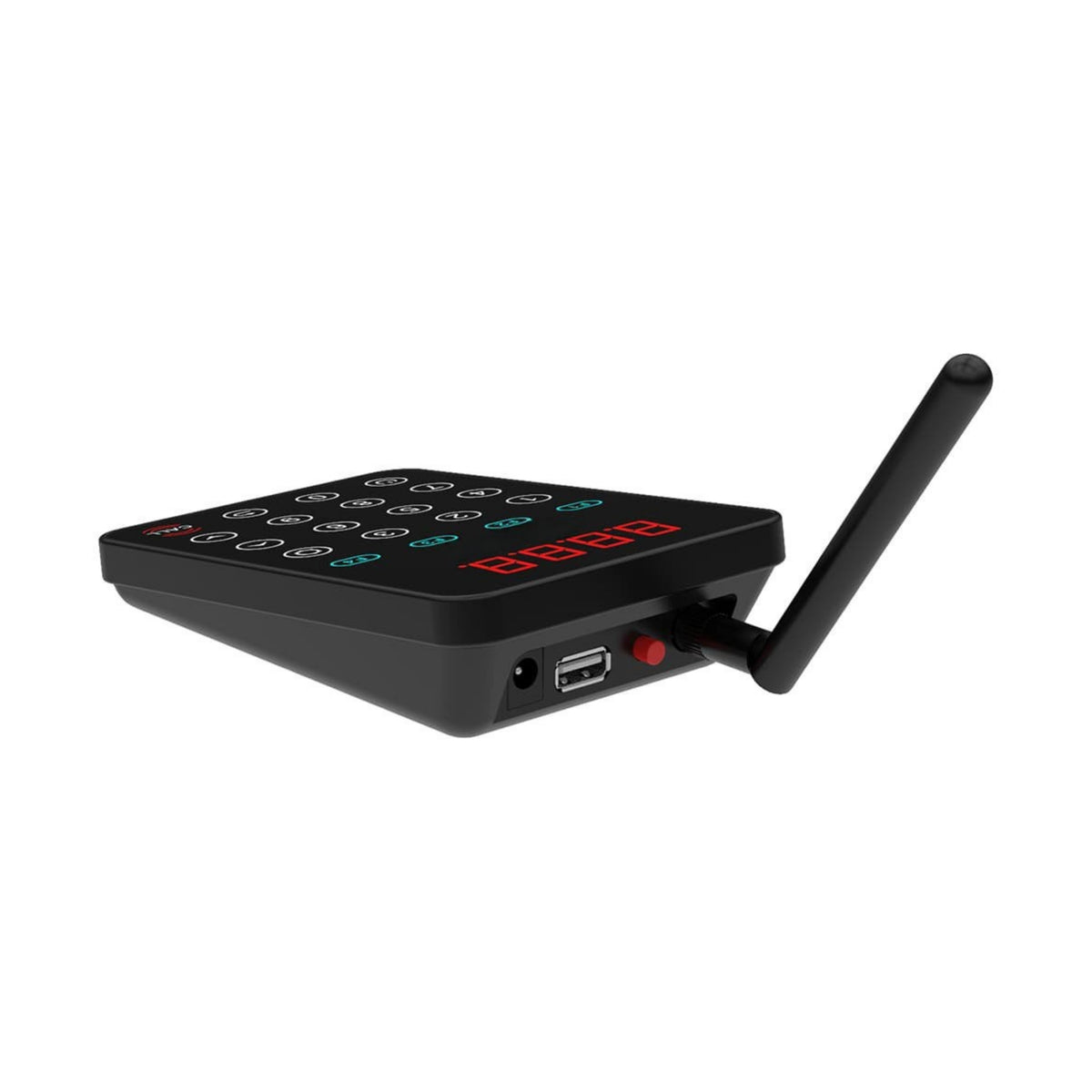

Transmitter

Frequency	433.92MHz
Display	4-Digit LED
Modulation	ASK
Transmission Power	360mW
Range	500m (open air)
Buttons	Capacitive touch 4×5

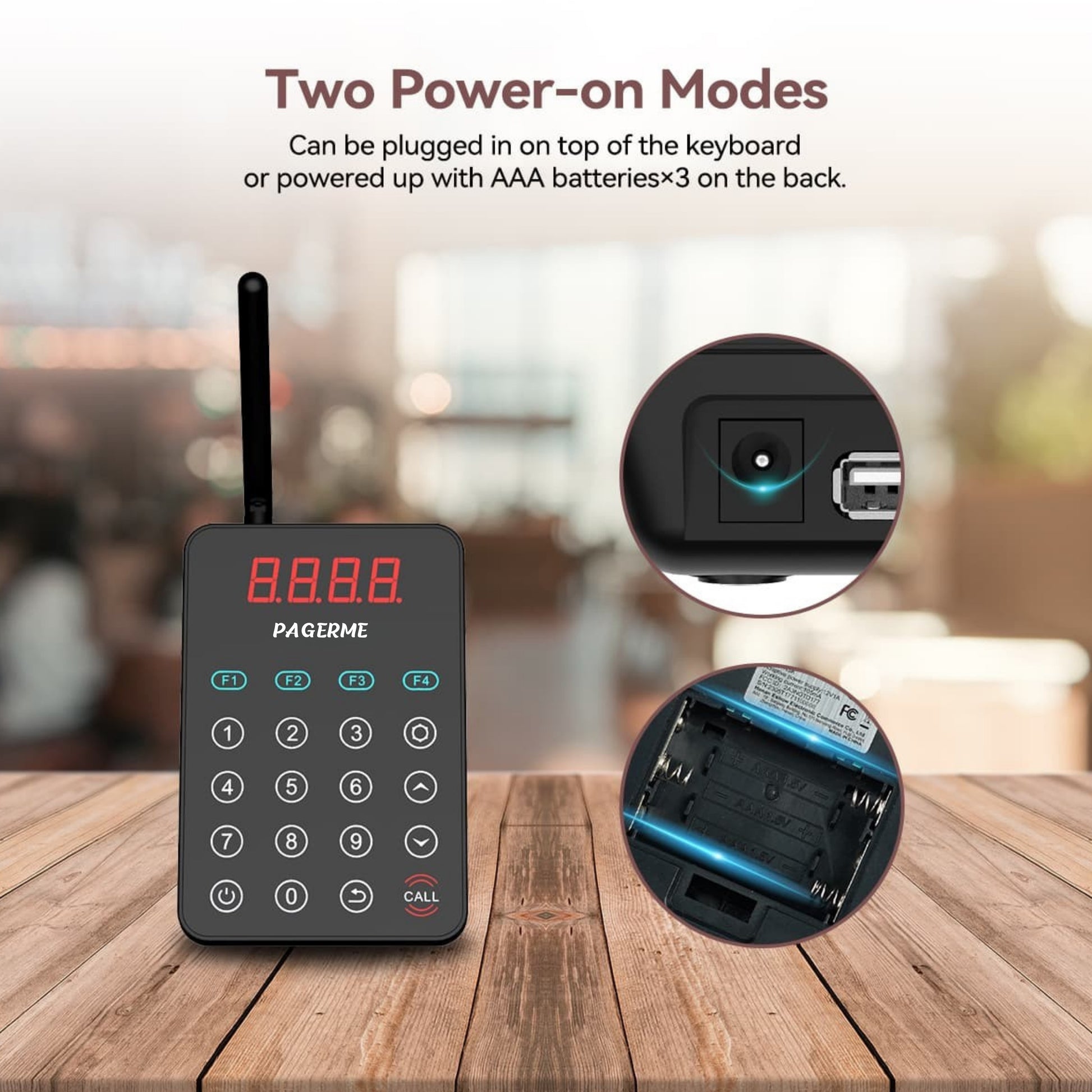

Input	DC 12V/1A or 3x AAA batteries
USB	USB-A (female)
Size	136×90×35mm

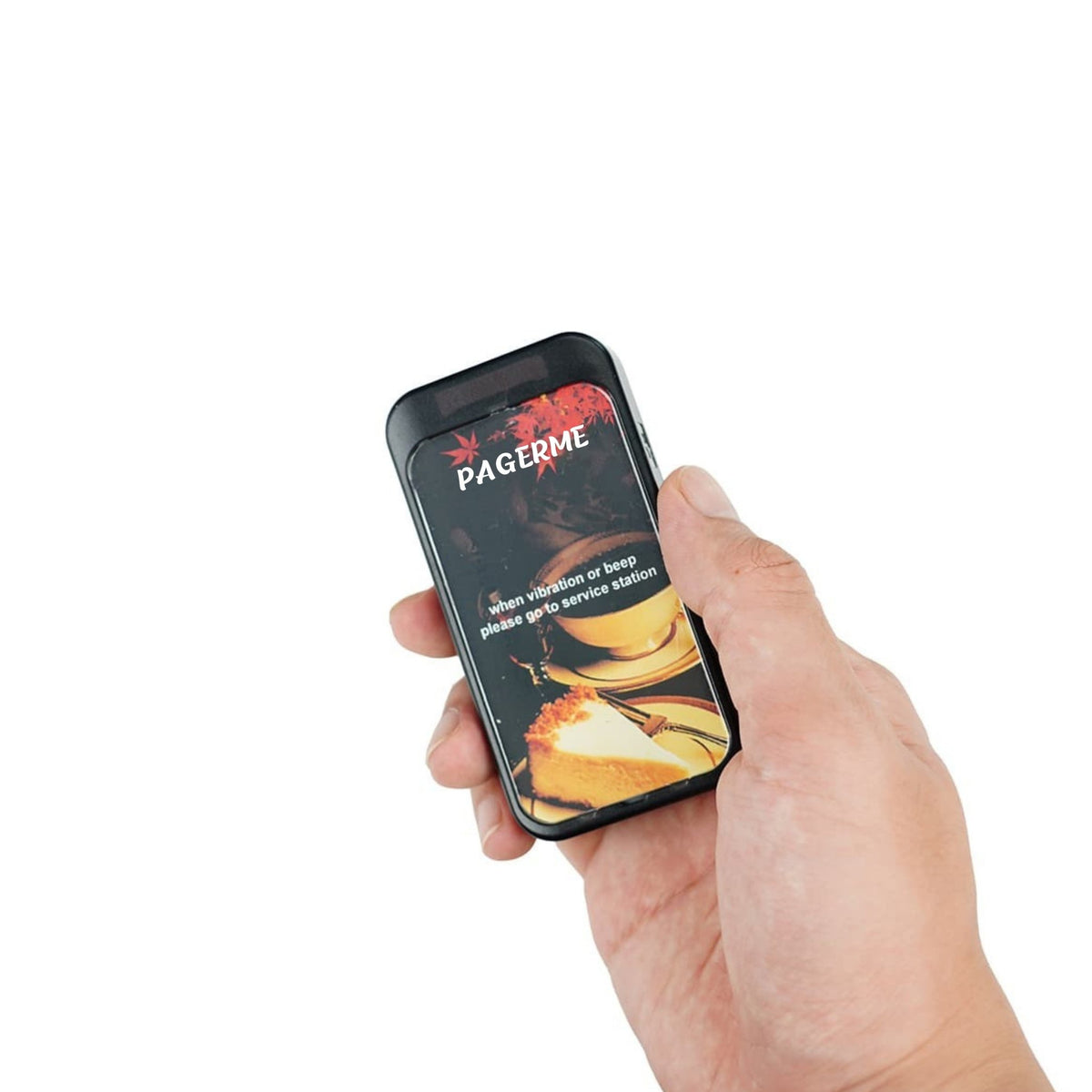

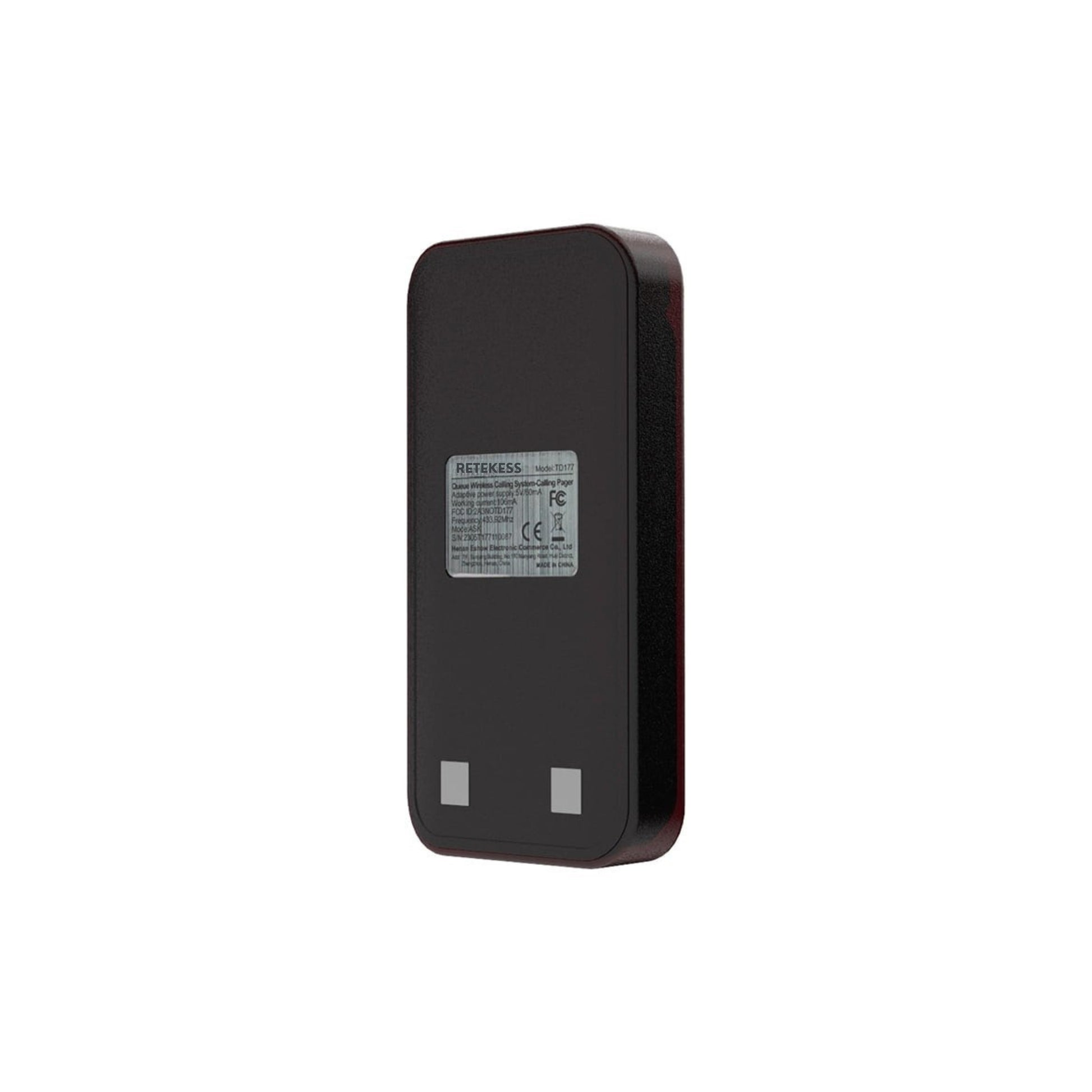

Pager

Frequency	433.92MHz
Prompt Modes	Vibrate, Beep, Flash (7 combinations)
Standby	~20h
Battery	Built-in 300mAh Lithium
Reminder Time	0–99s user-defined
Receiving Sensitivity	-113dBm
Waterproof Grade	IP67
Touch Keys	1 mute key
Size	52×100×15mm

Charging Base

Slots	10 (Expandable – connect up to 3 bases)
Bracket	Hardware base bracket (optional)
Input	DC 12V/2A
Size	167×120×190mm

---

❓ FAQ

Q: How does the WPS177 paging system work?
A: Hand a pager to customers waiting for food or service. When it's their turn, press the call button on the keyboard – the pager sounds, flashes, or vibrates to alert them. Perfect for restaurants, bars, cafés, banks, food trucks, church nurseries and more.

Q: How long does the battery last?
A: Up to 24–30 hours per charge.

Q: Can I set different alert modes?
A: Yes – 7 different combinations of vibrate, beep, and flash.

Q: Does it have an out-of-range alarm?
A: Yes – pagers beep if taken outside the working range and only stop once returned to the charging slot.

Q: Can I wall-mount the charging base?
A: Yes – three mounting holes are built into the back for easy installation.

Q: Can multiple transmitters call the same pager?
A: Yes – you can pair two transmitters to one pager for multi-station calling (e.g., kitchen + front counter).

Q: Can one keyboard control pagers on three bases at once?
A: Yes – simply pair the keyboard with each base separately using different base ID numbers.

Q: Can I add my own logo?
A: Yes – contact us for custom branding options. Each pager has a replaceable 84×45mm sticker slot.

💡 Tip: Use the keyboard on wood, plastic, or glass surfaces. Avoid metal or marble tabletops for best signal performance.

---
