JimiLab VL505 4G OBD II Plug & Play GPS Vehicle Tracker – Car & Fleet Tracking | Optional SIM Card & Web Tracking $95/Year

🚘 JimiLab VL505 4G OBD II GPS Tracker + TracksolidPro – Complete Fleet Management from $75

✅ Only $75 per device – plug & play in seconds
📡 SIM card & TracksolidPro web/app tracking – only $95 per device per year
🕵️ Optional hidden installation with a 2-way OBD Y-splitter – only +$25
🚛 Fleet pricing – order 1 to 60 devices in one click
🛡️ 24-Month NZ Warranty & Local Support
📦 NZ Stock – Fast Local Delivery

🚛 Manage Your Whole Fleet from One Screen

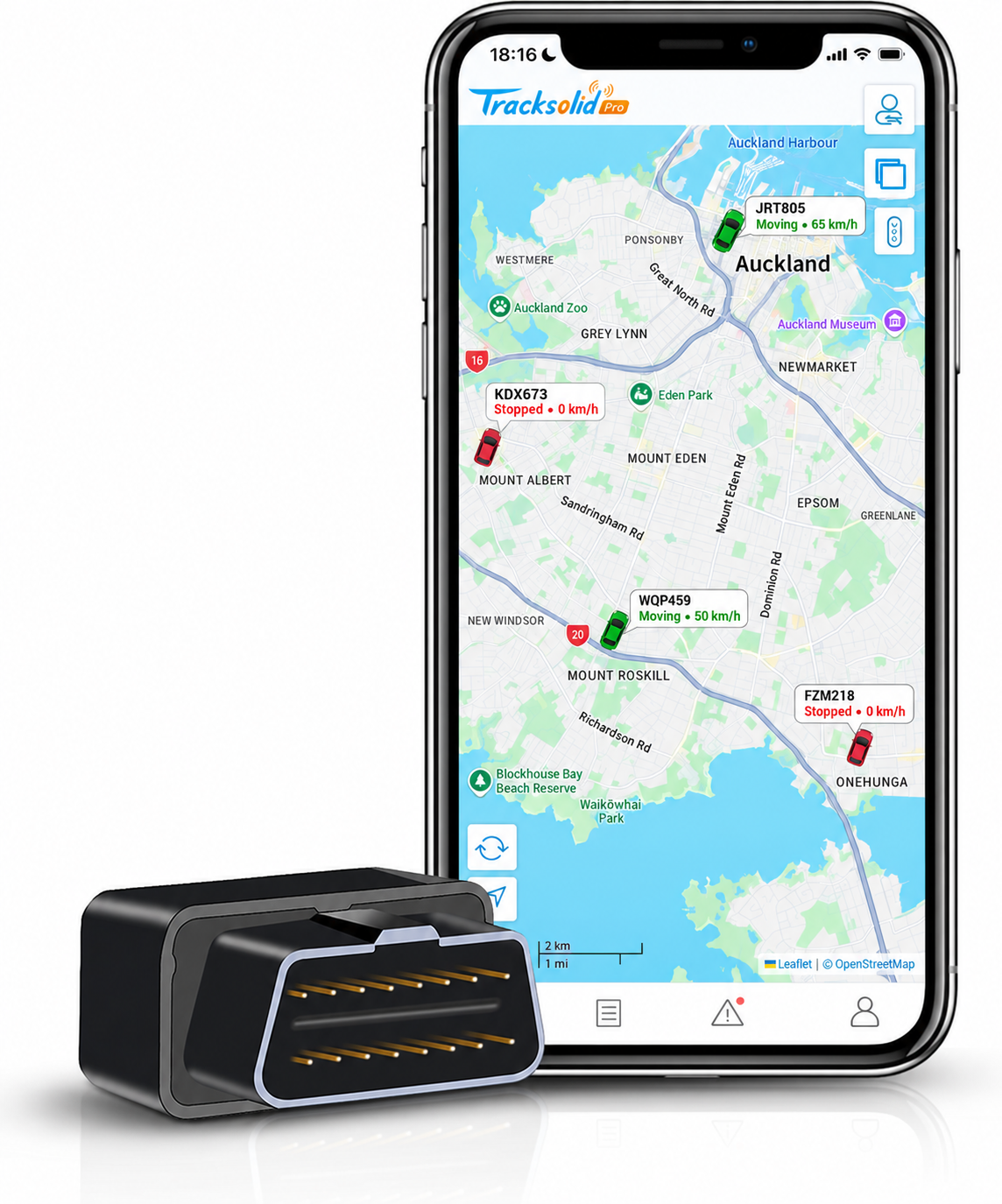

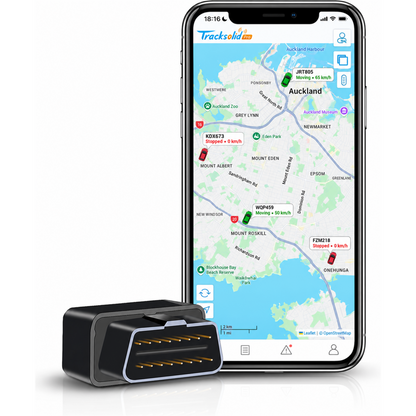

Whether you run 2 vans or 100 trucks, the VL505 and the TracksolidPro platform give you a live, accurate picture of every vehicle — where it is, whether it's moving or parked, how fast it's going and how it's being driven. Every vehicle appears on one map, grouped into your own fleets, with green for moving and red for stopped, so you can see the status of the whole operation at a glance.

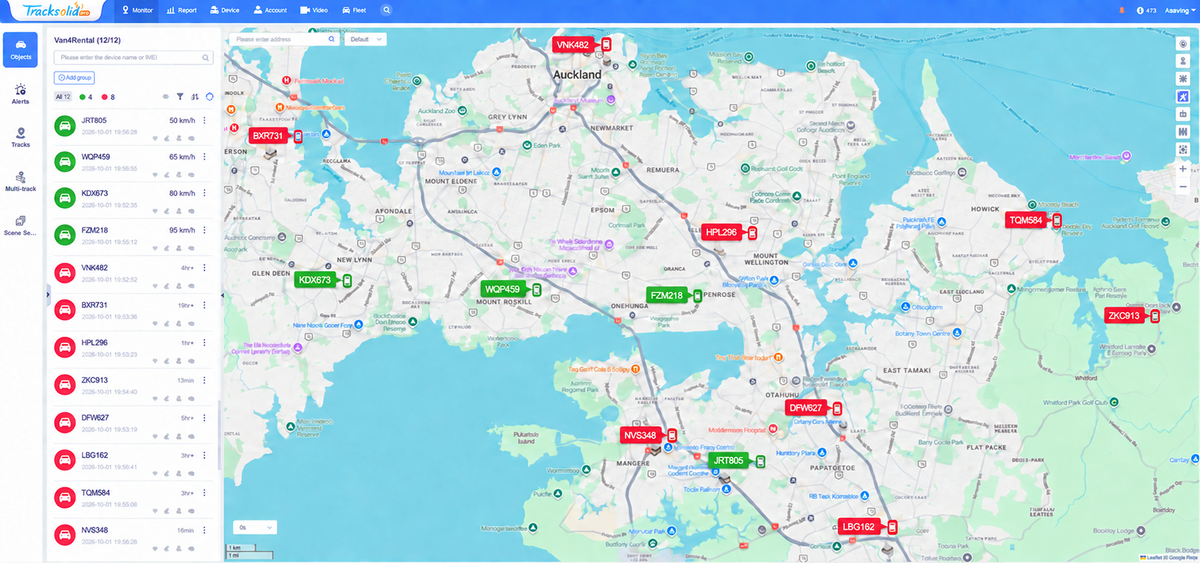

TracksolidPro fleet view – every vehicle, its live speed and parked time in one list and one map.

💼 What Fleet Management Does for Your Business

• ⏱️ Save time dispatching – see the nearest available vehicle instantly and send it to the next job, instead of phoning drivers.
• ⛽ Cut fuel costs – idling, speeding and unplanned trips are visible and reportable, so you can act on wasted fuel.
• 🚦 Safer drivers, fewer accidents – harsh braking, harsh acceleration, sharp cornering, speeding and collision alerts help you coach drivers and protect your people.
• 🧾 Accurate records – trips, mileage, parking and ignition times are logged automatically for timesheets, customer billing, mileage claims and disputes.
• 🔒 Protect your assets – geo-fences, out-of-hours movement and device-removal alerts warn you the moment something isn't right, and live location speeds up theft recovery.
• 🔧 Plan maintenance – mileage data makes service scheduling simple and keeps vehicles on the road longer.
• 😊 Better customer service – give customers accurate arrival times and proof of visit.

🌐 Why TracksolidPro? Reliable, Simple to Use, Proven Quality

TracksolidPro is the official cloud tracking platform from Jimi IoT (JimiLab), a global manufacturer of vehicle telematics and GPS tracking devices. It's trusted by fleets and businesses around the globe:

2.6 million devices connected (2.6 million+ integrated)

800,000+ devices active daily

180+ countries

30+ languages

• ✅ Reliable – a mature, large-scale cloud platform running millions of devices every day, so your data is there when you need it.
• ✅ Simple to use – clean web dashboard plus iOS & Android apps; most customers are tracking within minutes, with no training needed.
• ✅ Quality – device and platform are designed by the same manufacturer, so the VL505 and TracksolidPro work together seamlessly.
• ✅ Anywhere access – 24/7 access from your office computer, laptop, tablet or phone, with multi-user accounts so managers and dispatchers can share the view.

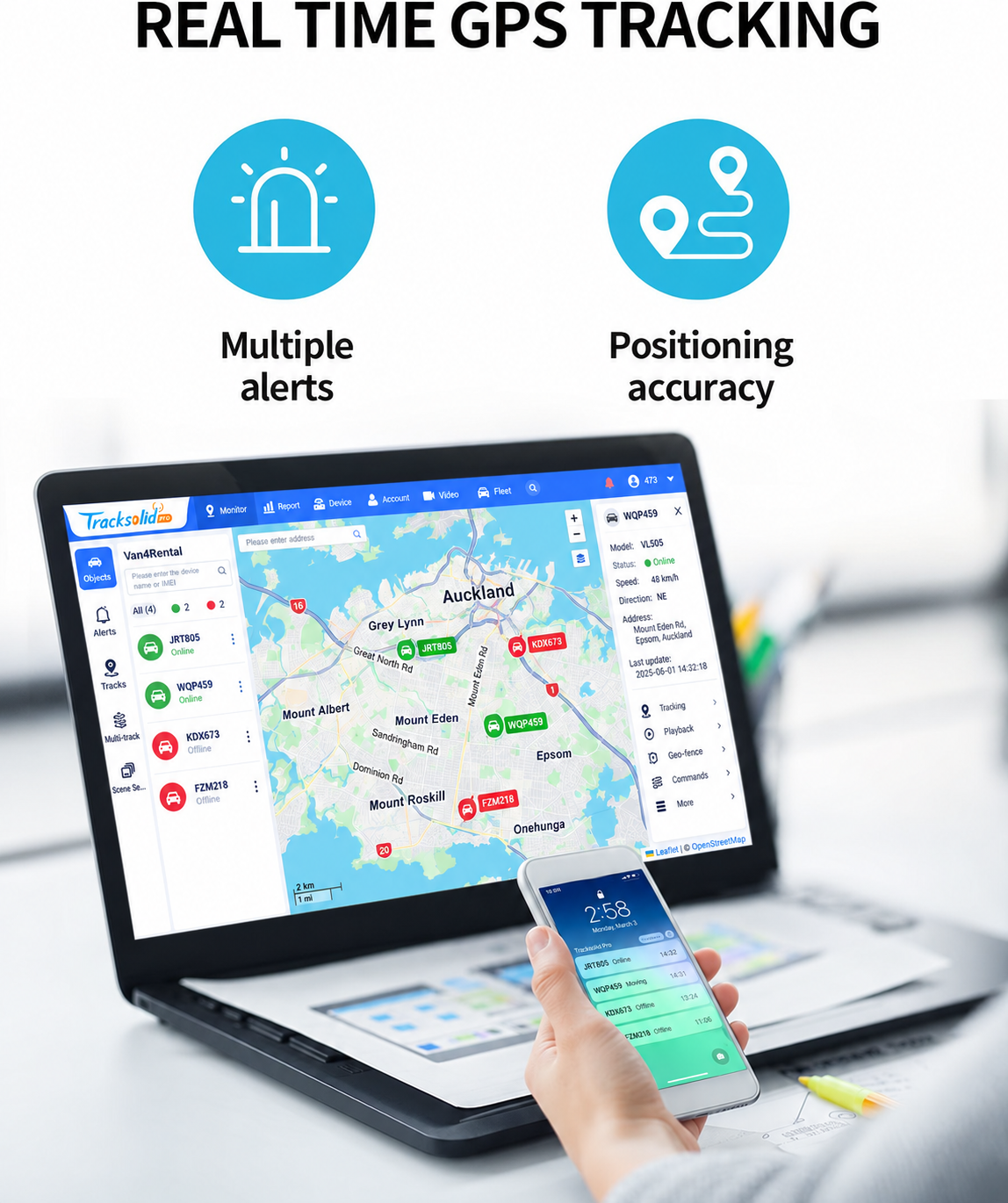

Web dashboard and mobile app – vehicle details, live speed, address, playback, geo-fence and commands in one click.

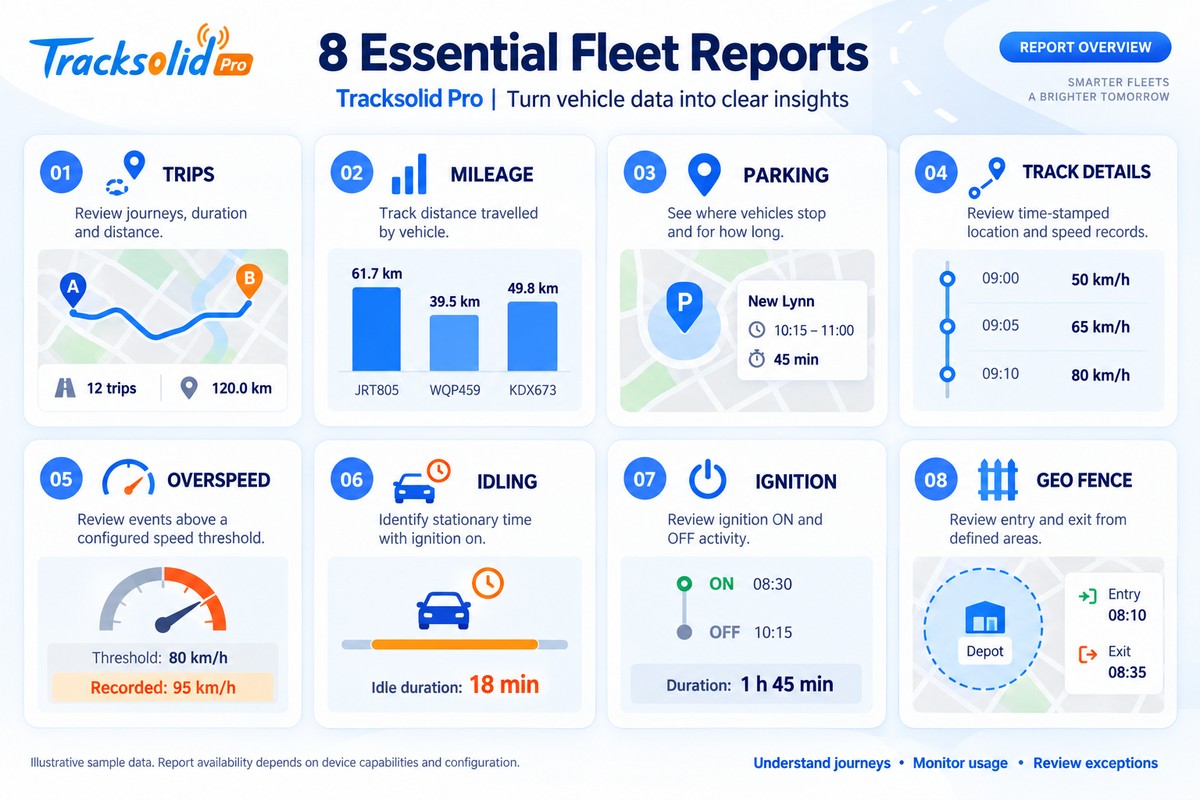

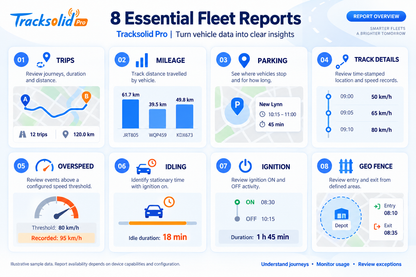

📊 8 Essential Fleet Reports – Turn Vehicle Data into Clear Decisions

TracksolidPro turns raw GPS data into reports you can actually use:

1. Trips – every journey with start, finish, duration and distance.
2. Mileage – distance travelled by each vehicle, ideal for servicing, RUC planning and cost allocation.
3. Parking – where vehicles stopped and for how long; confirm site visits and spot unauthorised stops.
4. Track details – time-stamped location and speed records for any period.
5. Overspeed – every event above your chosen speed limit, for driver coaching and safety compliance.
6. Idling – engine-on stationary time, a direct source of wasted fuel.
7. Ignition – ON/OFF times to verify working hours and vehicle use.
8. Geo-fence – entry and exit times for depots, customer sites or no-go zones.

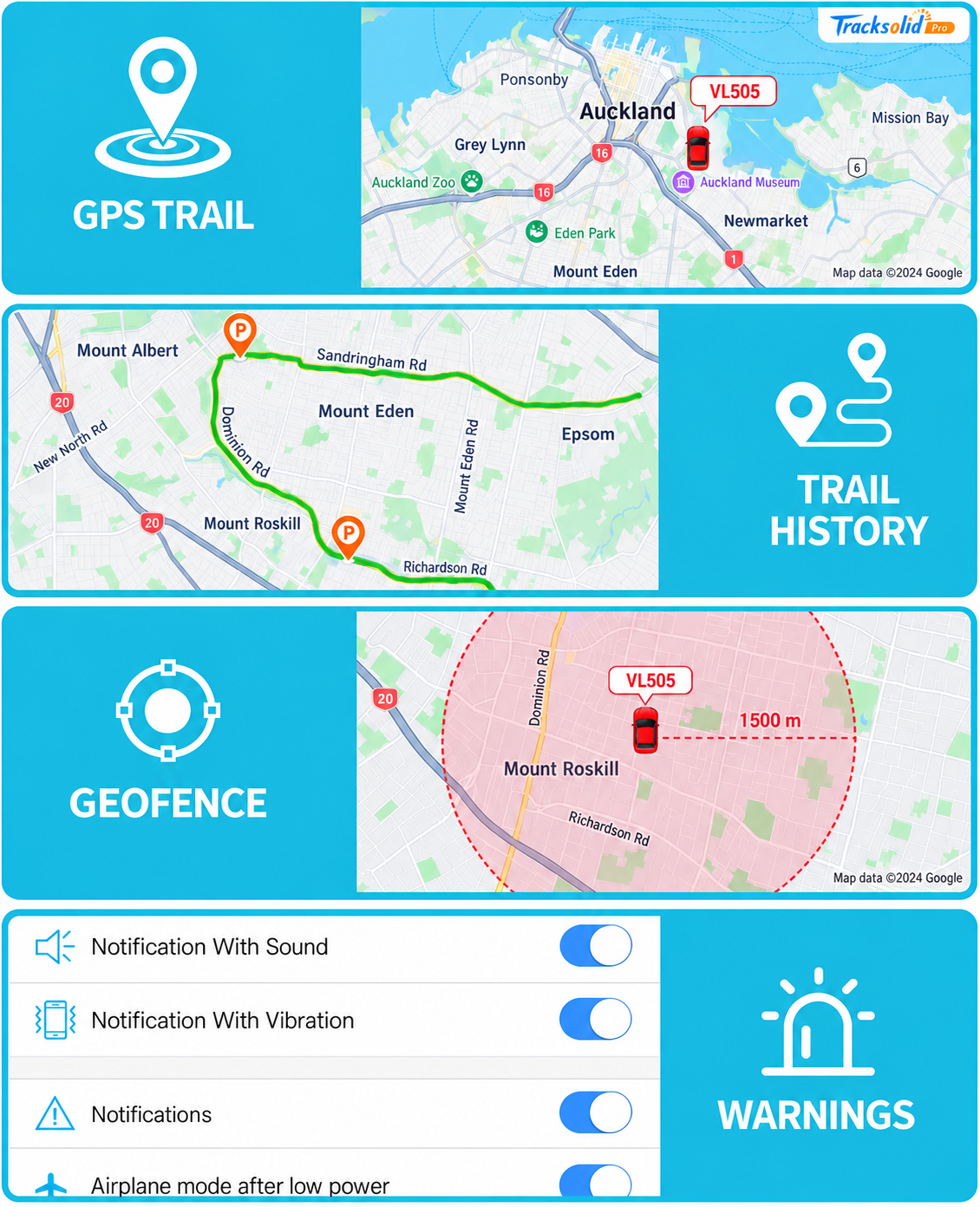

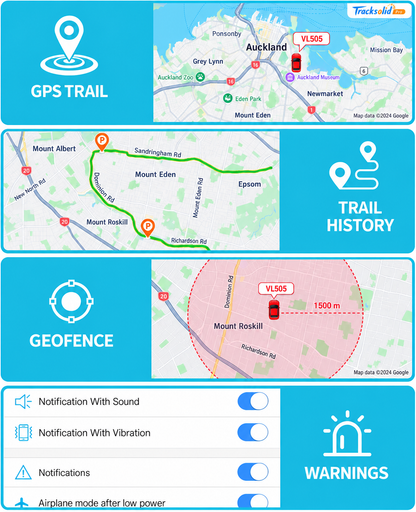

📍 Live Tracking, Trail History, Geo-Fences & Instant Warnings

• 📍 GPS trail – see each vehicle's live position on the map, updated in real time.
• 🛣️ Trail history – replay any route with parking stops marked, to answer “where was the van at 2 pm?” in seconds.
• ⭕ Geo-fence – draw a zone (e.g. a 1,500 m radius around a depot or job site) and get notified when vehicles enter or leave.
• 🚨 Warnings – push notifications with sound or vibration for speeding, movement, geo-fence, power disconnection and more.

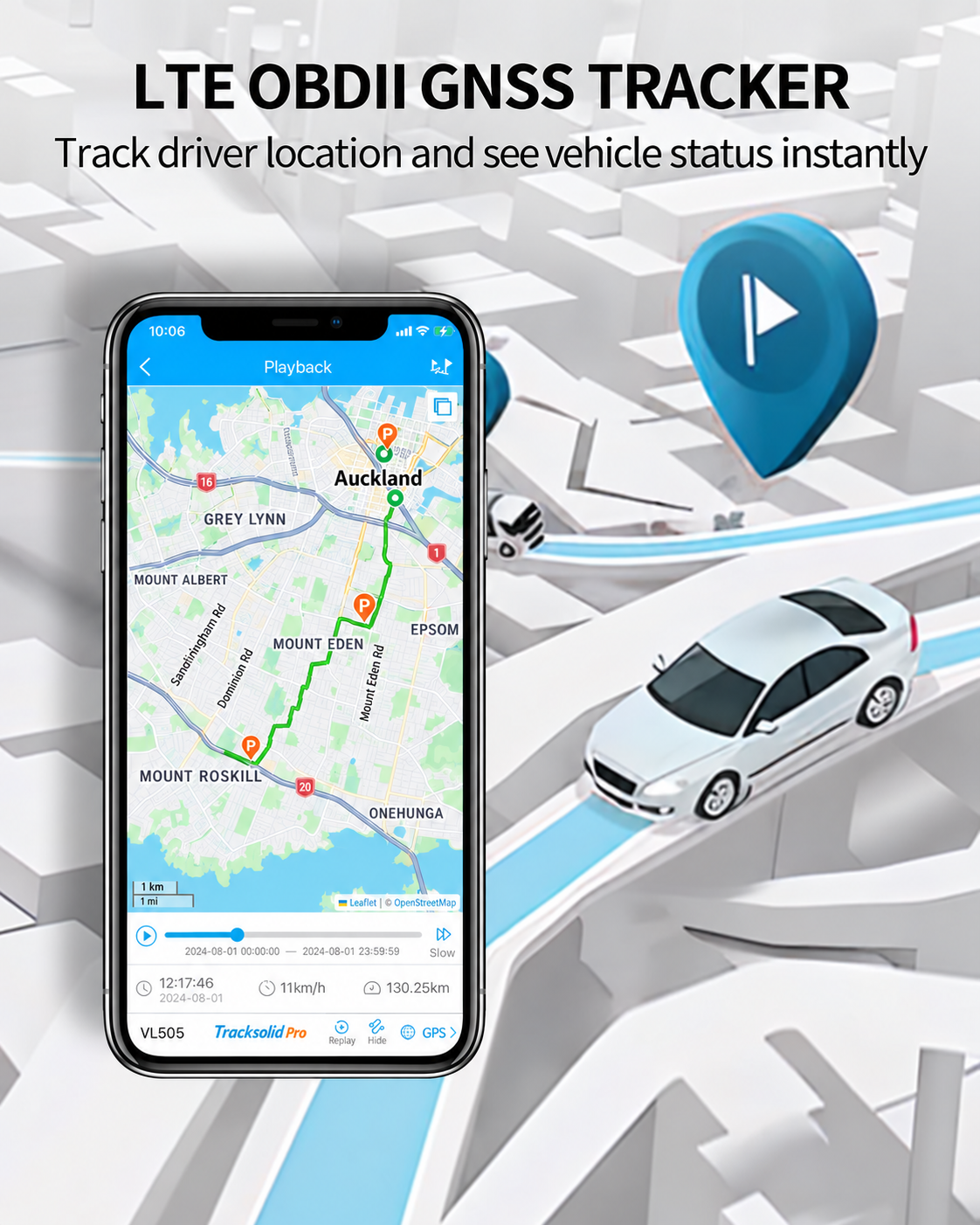

Route playback on the phone app – see the exact route, stops, speed and total distance for the day.

🎬 See the VL505 in Action

🔹 Why Choose the VL505 Tracker?

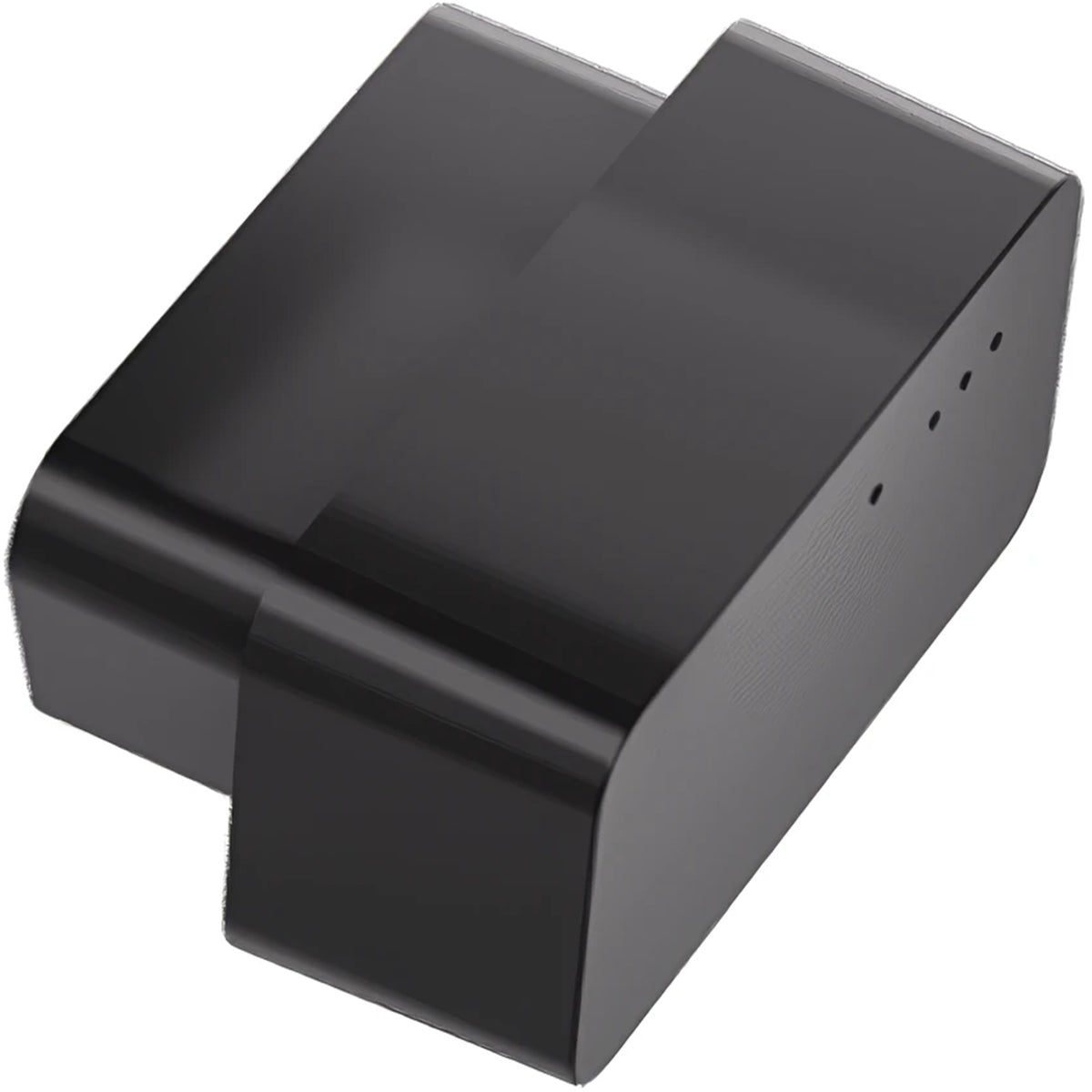

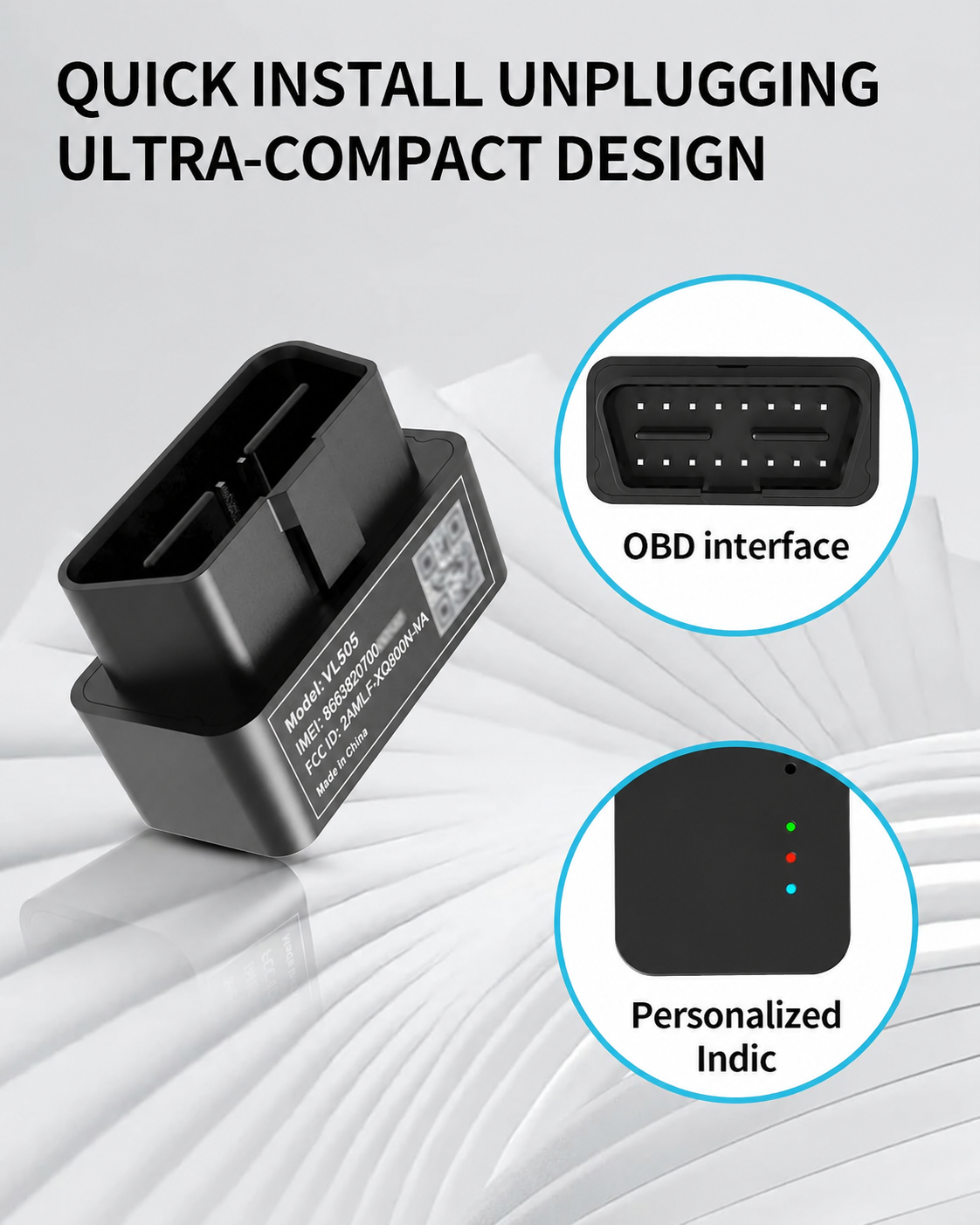

The JimiLab VL505 is an ultra-compact 4G LTE OBD II GPS tracker — just 45 × 30 × 22.5 mm and 26 g. It connects directly to the vehicle's OBD II port with no tools or wiring, draws power from the vehicle (9–36 V, so it suits cars, utes, vans and light trucks) and starts reporting straight away. Rolling it out across a whole fleet takes minutes, not days — and there's no installer to pay.

Multi-source positioning (GPS + BDS + A-GPS + LBS) gives accuracy better than 2.5 m, while LTE Cat 1 with automatic GSM fallback keeps it connected. Built-in motion sensors score driver behaviour and flag harsh braking, rapid acceleration, sharp turns and collisions, and a built-in microphone allows remote voice monitoring.

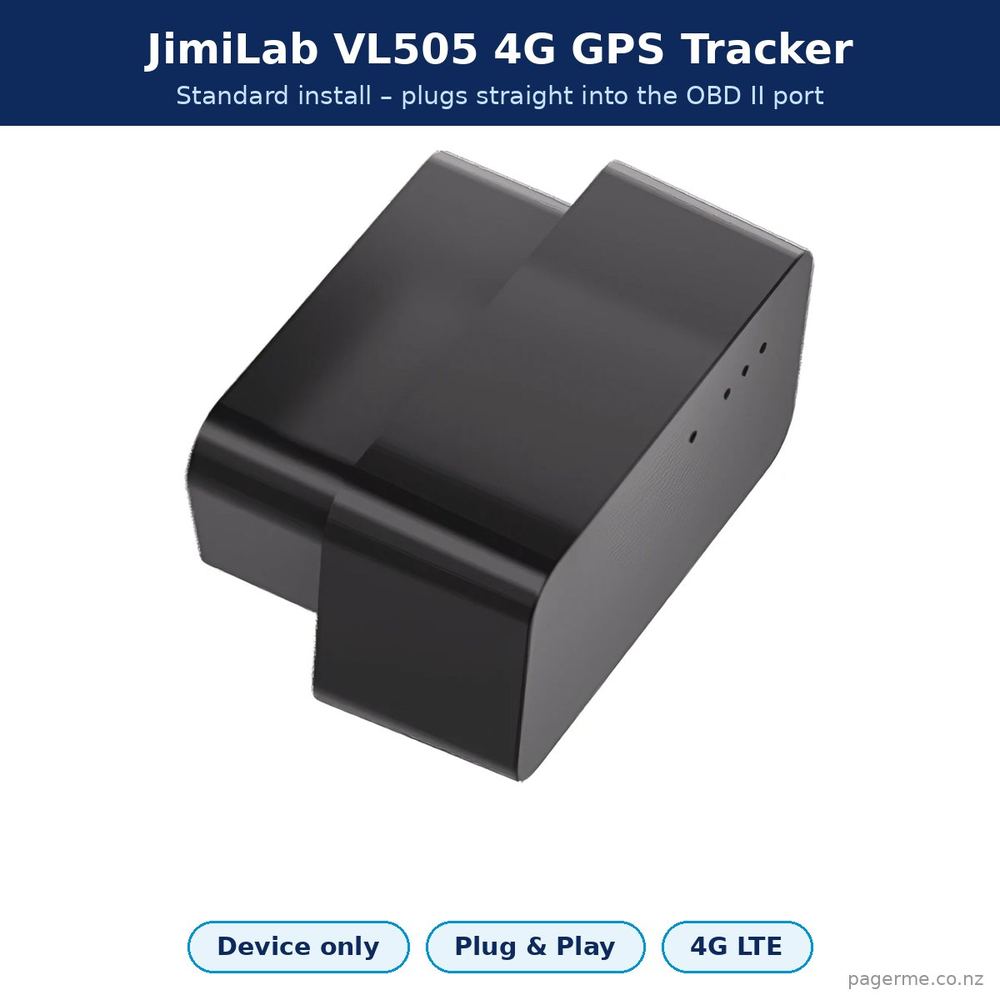

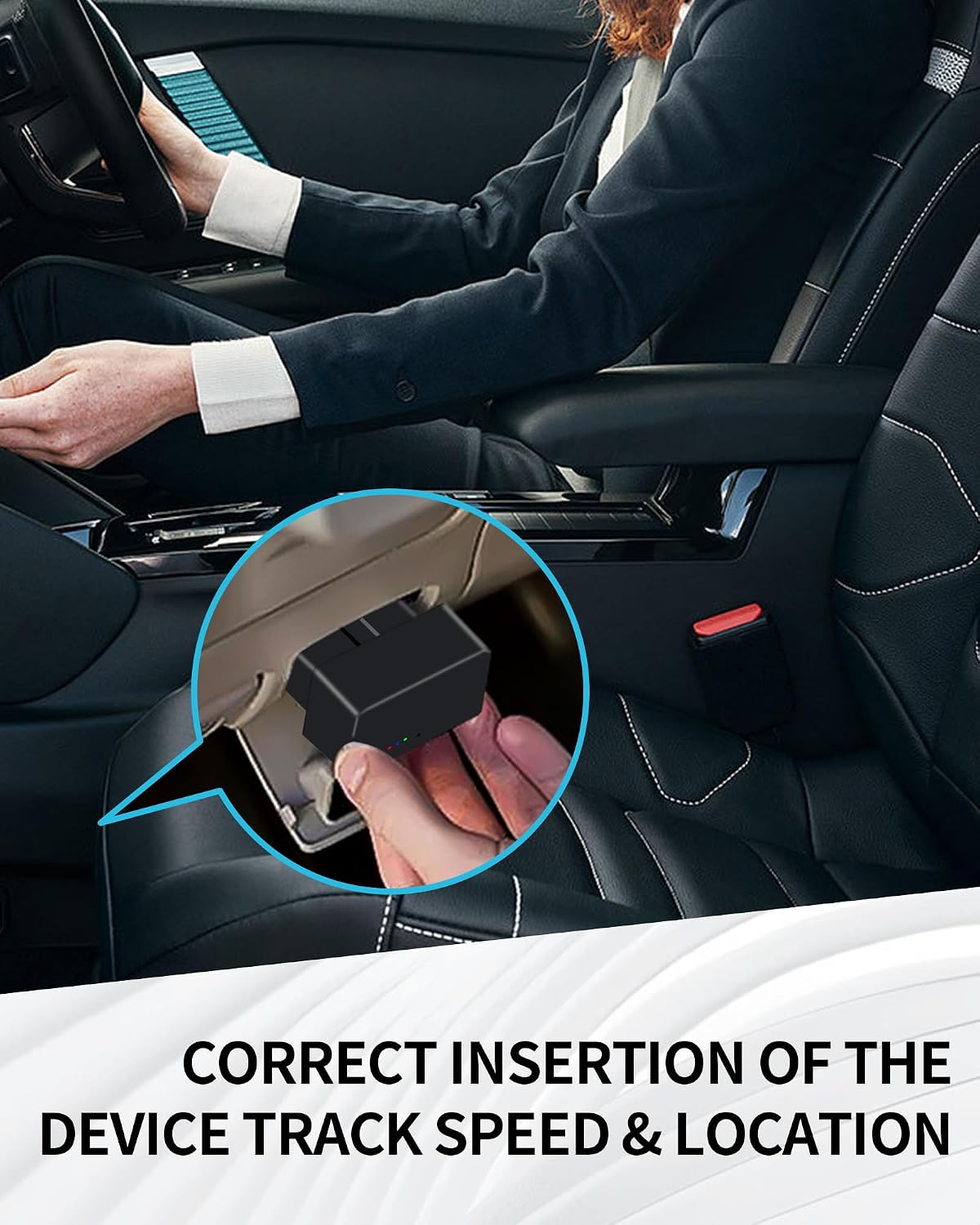

Standard installation – simply plug the VL505 into the OBD II port under the dashboard.

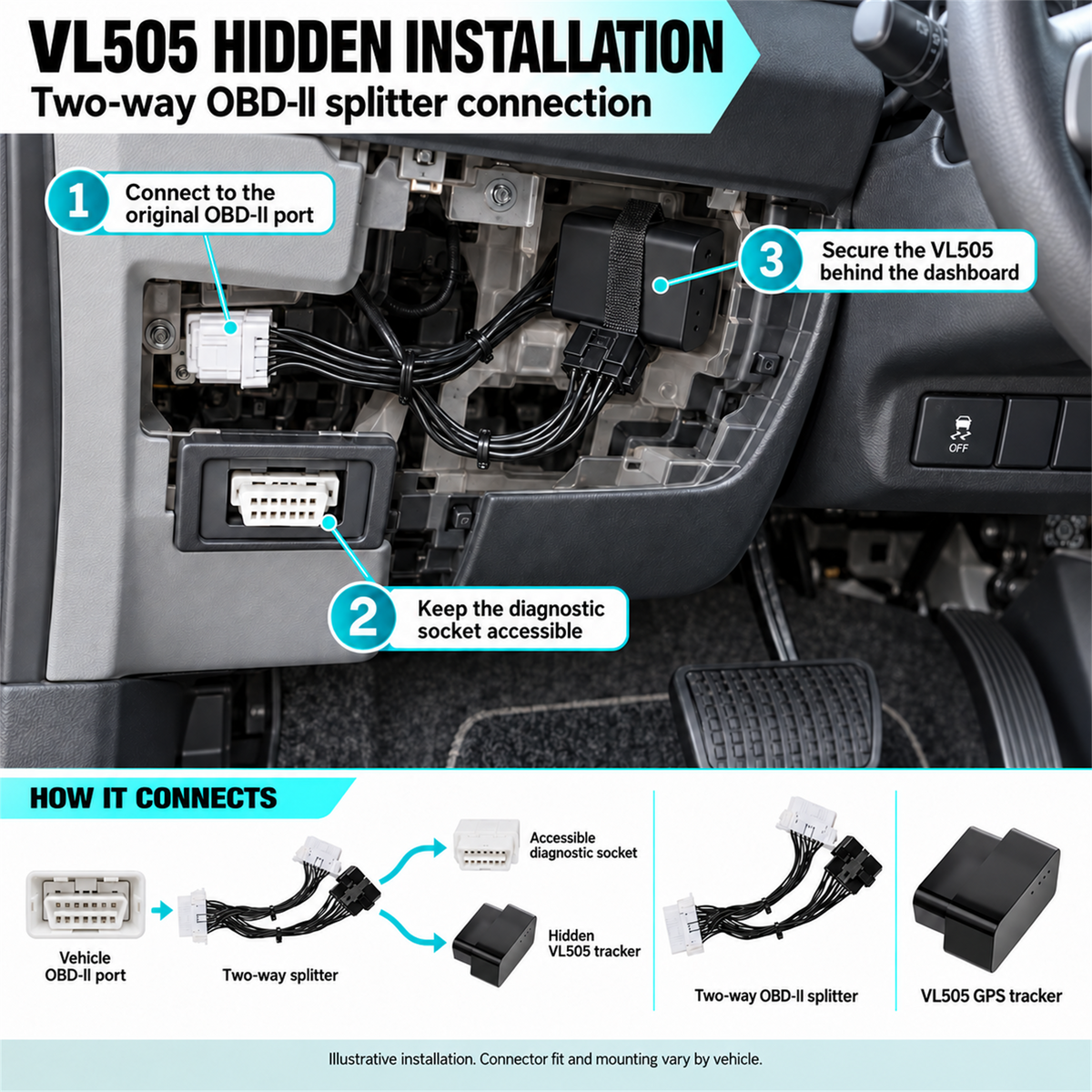

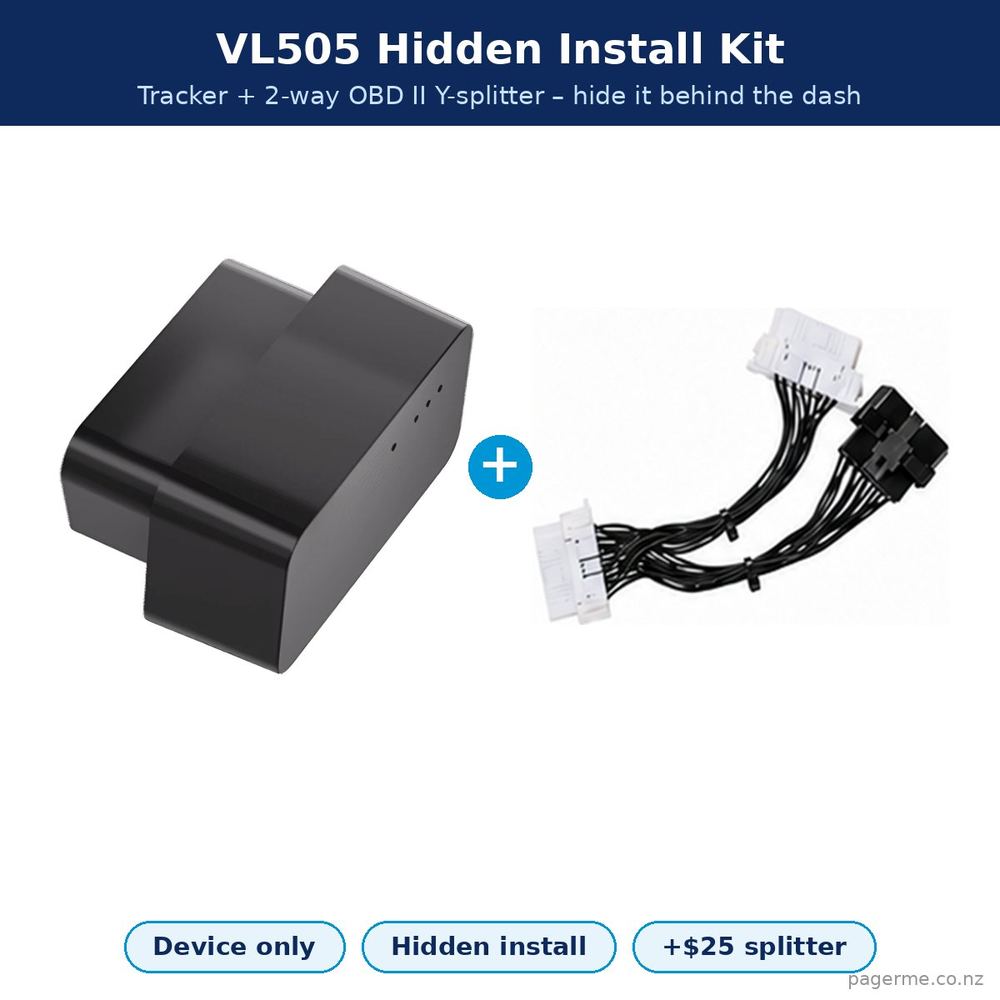

🕵️ Hidden Installation – OBD Y-Splitter (+$25)

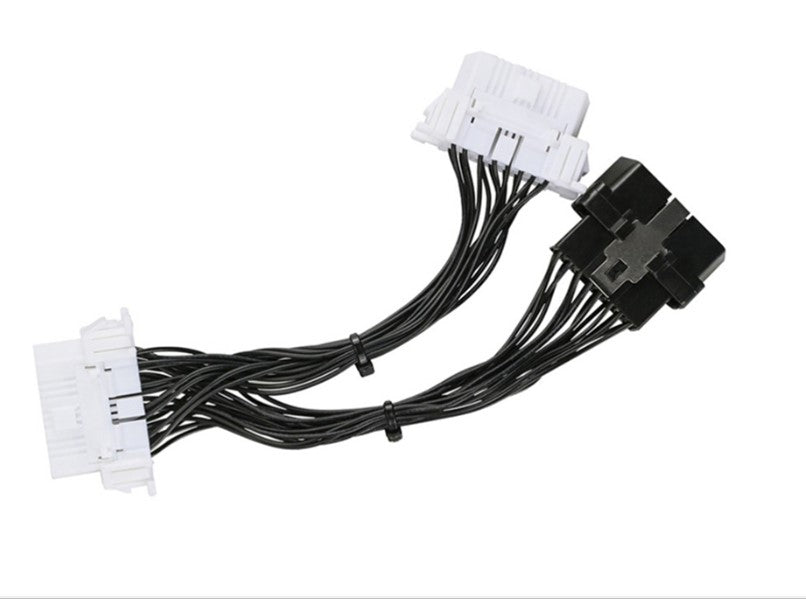

A standard OBD tracker sits in plain view under the dash, where drivers or thieves can see and unplug it. With our 2-way OBD II Y-splitter cable, the VL505 is secured behind the dashboard, out of sight, while the diagnostic socket stays exactly where it was.

1. Connect the splitter to the vehicle's original OBD II port.
2. Keep the diagnostic socket accessible – mechanics and scan tools plug in as normal.
3. Secure the VL505 behind the dashboard – no visible sign of a tracker, harder to tamper with, better theft recovery.

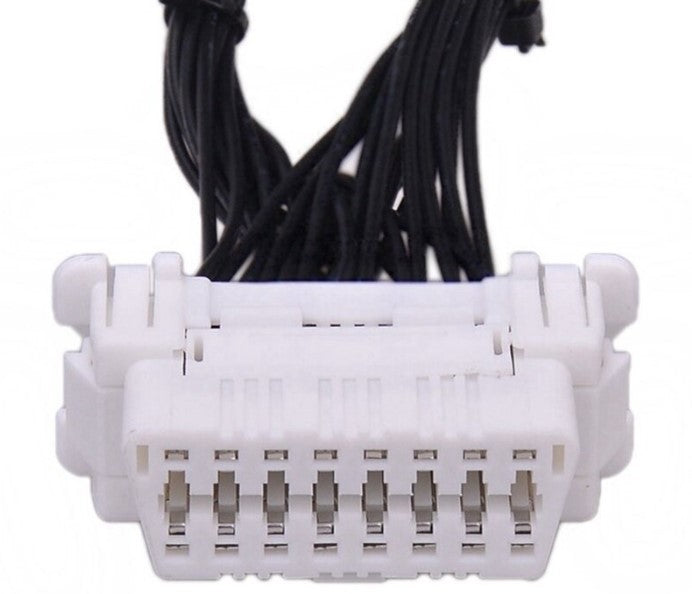

Standard 16-pin OBD II, 1 × male to 2 × female, two 15 cm leads – no cutting or splicing. Select “Hidden – 2-way OBD Y-splitter cable (+$25)” under Installation.

🛒 Ordering & Pricing – Simple, Transparent

• 1. Number of devices – choose 1 to 60 units at $75 per device (e.g. 5 devices = $375, 10 devices = $750).
• 2. Installation – Standard (plug into the OBD port) or Hidden with a 2-way OBD Y-splitter for +$25 per device.
• 3. Tracking plan – Device only, or Device + SIM card & TracksolidPro web/app tracking for $95 per device per year (under $8 a month).

Per device	Device only	Device + SIM & TracksolidPro (12 months)
Standard – plug into OBD port	$75	$170

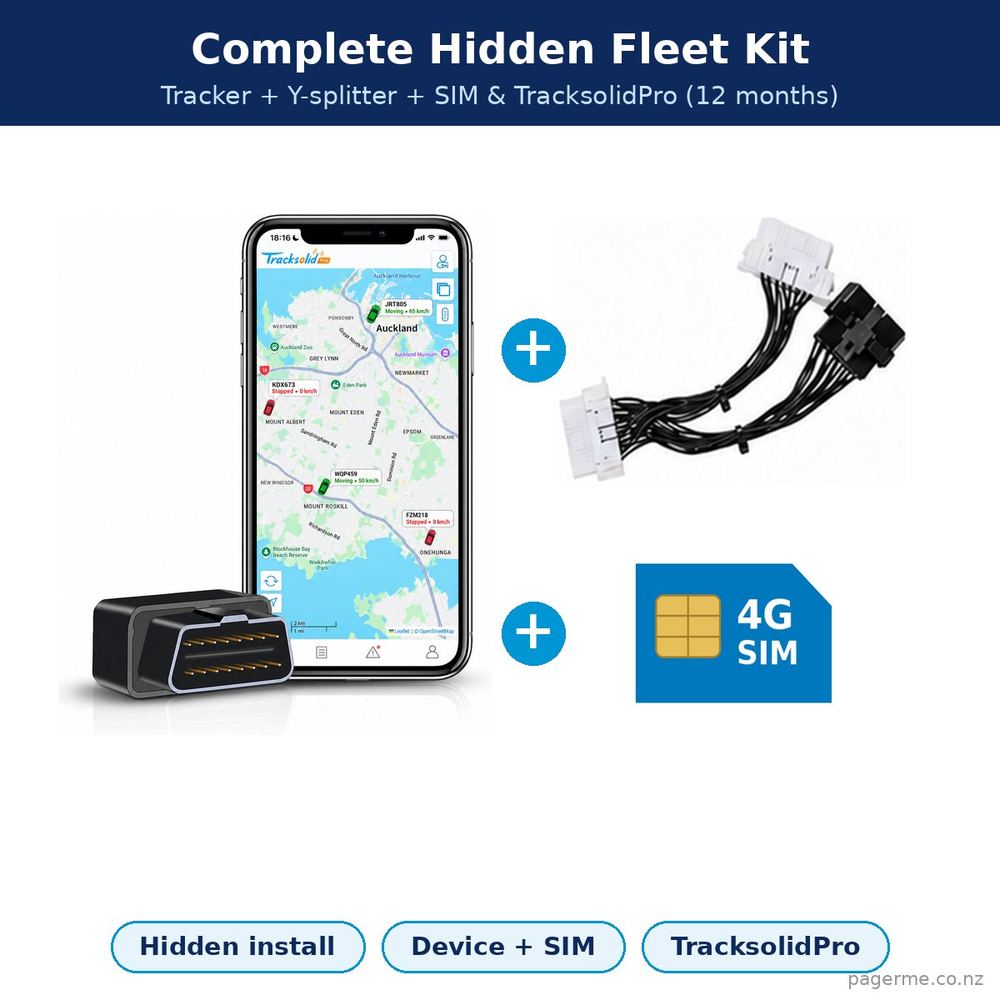

Hidden – with OBD Y-splitter cable	$100	$195 – complete hidden package

Fleet example: 10 vans with SIM & TracksolidPro = 10 × ($75 + $95) = $1,700 for a full year of fleet tracking, reports and alerts — about $14 per van per month in the first year, and just $95 per van per year after that.

Need more than 60 units, or a multi-year plan? Contact us for a fleet quote.

👉 Try TracksolidPro now – free demo: Username 123456Test | Password 123456Test

⚙️ Technical Specifications

Model	JimiLab (Jimi IoT) VL505 LTE OBD II GNSS tracker
Positioning	GPS, BDS (BeiDou), A-GPS, LBS
Positioning accuracy	<2.5 m CEP
Tracking sensitivity	–163 dBm
Time to first fix (open sky)	Hot start ~1 s; cold start ~28 s (average)
Cellular	4G LTE Cat 1 with GSM fallback
Input voltage	9–36 V DC via OBD II connector
Power consumption	2 mA standby; 35 mA working (one update per 10 s)
Backup battery	50 mAh / 3.7 V
Sensors	Accelerometer (vibration, speeding, collision, harsh driving)
Voice monitoring range	≤5 m
LED indicators	Power (red), GNSS (blue), cellular (green)
Dimensions / weight	45.0 × 30.0 × 22.5 mm · 26 g
Operating temperature	–20 °C to +70 °C
Operating humidity	5–95 %, non-condensing
Tracking platform	TracksolidPro web + iOS/Android app
Y-splitter cable (optional)	OBD II 16-pin, 1 male → 2 female, 2 × 15 cm leads

📦 What's in the Box

• JimiLab VL505 4G OBD II GPS tracker (quantity as selected)
• Hidden installation: one 2-way OBD II Y-splitter cable per tracker (when selected)
• SIM card & tracking plan: SIM with 12 months of data and TracksolidPro web & app access (when selected)
• Quick-start guide

⚠️ Please note: mobile phone not included. Phones, laptops and computers shown in the photos are for illustration only. Simply download the free TracksolidPro app on your own iOS or Android smartphone, or log in from any web browser.

🌍 Perfect For

🚚 Fleet Management & Logistics – dispatch, driver scoring, fuel and route savings
🚐 Rental & Leasing – protect assets and detect unauthorised use
🚙 Trades & Service Vehicles – proof of visit, job times and accountability
🛡️ Insurance & Usage-Based Programmes – driving-behaviour data
🚗 Personal Cars & Family – theft recovery, speeding and geo-fence alerts

❓ Frequently Asked Questions

Will it fit my vehicles? The VL505 works with any vehicle with a standard 16-pin OBD II port and a 9–36 V system — most cars, utes, vans and light trucks built since the early 2000s.

Do I need a technician? No. Plug the tracker into the OBD II port (usually under the dashboard on the driver's side). For a hidden install, use the Y-splitter and tuck the tracker behind the dash trim.

Can several staff see the fleet? Yes. TracksolidPro supports multiple users and sub-accounts, on the web and on the iOS/Android app.

What happens after the 12-month plan? Renew the SIM & TracksolidPro plan for another year at $95 per device — we'll remind you before it expires.

Can I mix options in a fleet? Yes — add different combinations to the cart as separate line items, or contact us and we'll set up your fleet account for you.

Questions about fleet set-up, hidden installation or the TracksolidPro platform? Contact us and we'll help you get started.
